Stabilizer Bar And Links

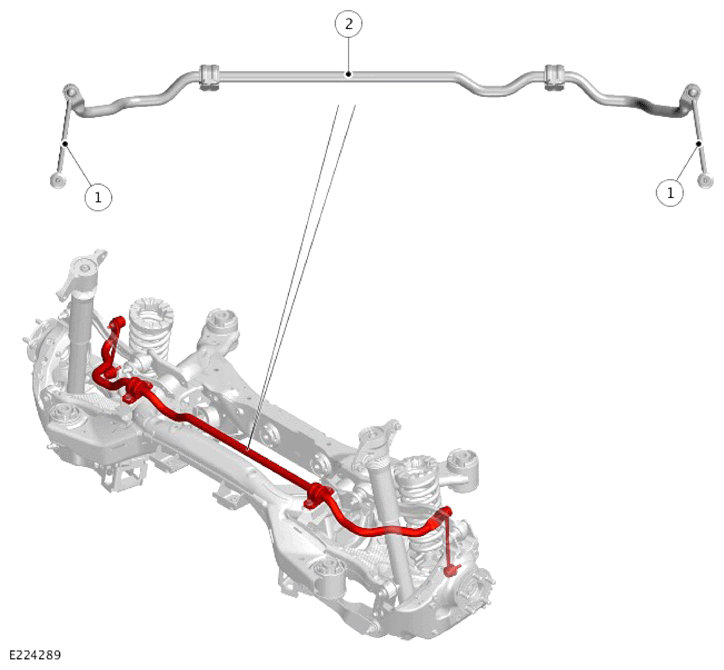

| ITEM | DESCRIPTION |
|---|---|
| 1 | Stabilizer bar link |
| 2 | Stabilizer bar |
The stabilizer bar is fabricated from hardened steel pipe. The stabilizer bar is attached to the wheel knuckle with a pair of stabilizer bar links.
The stabilizer bar is mounted with 2 compression rubber bushes which wind up torsionally in operation. Brackets, which are mounted onto the bushes, are attached to the rear subframe with bolts.
The stabilizer bar links have a ball joint at each end and are equipped with hardened steel washers pressed onto the ball-pins at both ends.
