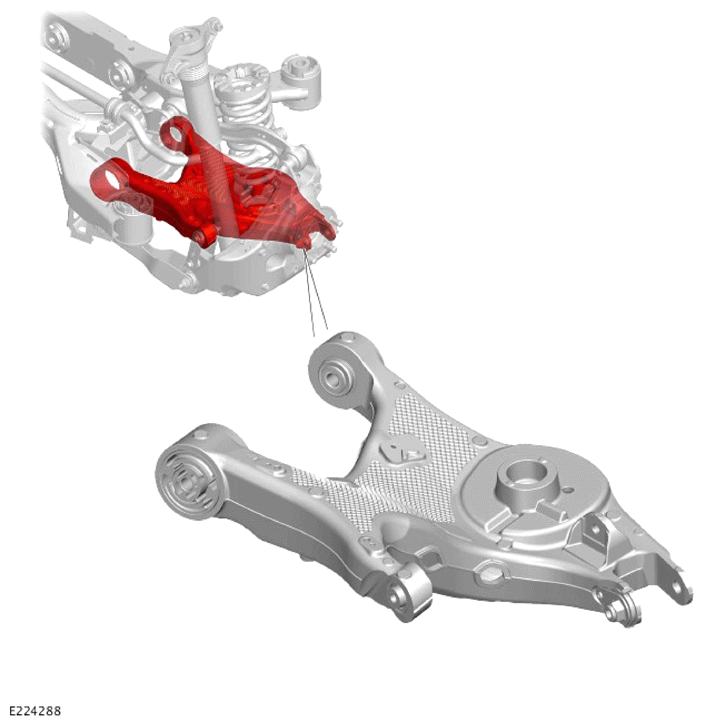

Lower Control Arm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The lower control arm is made from aluminum with bushes pressed into the machined bores which provide for the attachment to the rear subframe. The lower control arm has a platform which provides attachment for the spring and a location hole for the attachment of the stabilizer bar link. The rear bushes that are connecting the lower control arm to the subframe and to the wheel knuckle are ball joint bushes.
