System Operation
WARNING: This page is about a different variant/trim than selected.

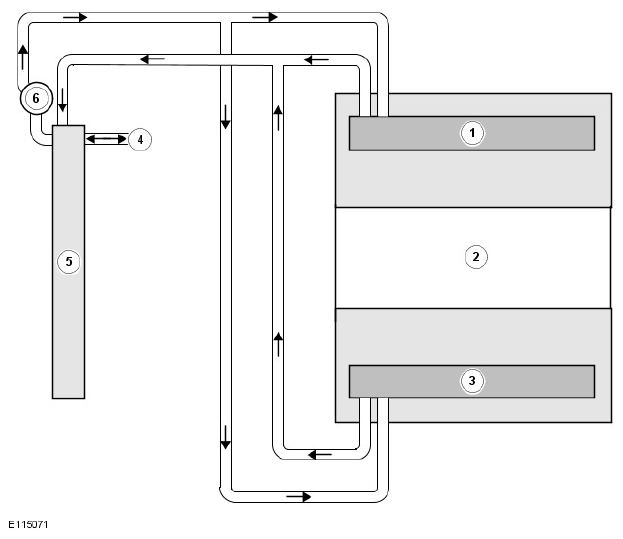

Supercharger Cooling Flow Diagram
| ITEM | DESCRIPTION |
|---|---|
| 1 | Right Supercharger Charge Air Cooler |
| 2 | Engine |
| 3 | Left Supercharger Charge Air Cooler |
| 4 | Expansion Hose Connection (with engine cooling system) |
| 5 | Charge Air Radiator |
| 6 | Charge Air Coolant Pump |
Electrical power for the charge air coolant pump is supplied from the charge air coolant pump relay in the EJB. When the charge air coolant pump relay is energized, it connects power from the battery to the charge air coolant pump. Operation of the charge coolant pump relay is controlled by the ECM. The charge air coolant pump relay is energized continuously while the ignition is in power mode 6.
When the charge air coolant pump is running, coolant flows from the pump outlet through the supercharger charge air coolers, to the charge air radiator mounted in front of the engine cooling radiator and back to the pump inlet.
