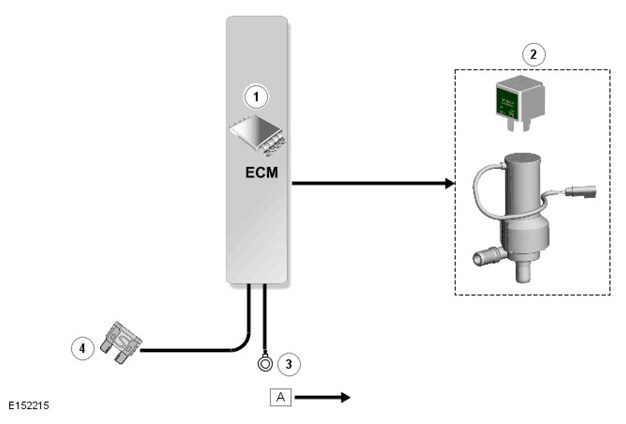

Input And Output Control Diagram
WARNING: This page is about a different variant/trim than selected.
NOTE:
A
= Hardwired
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Engine Control Module (ECM) |
| 2 |
Charge Air Coolant Pump |
| 3 |
Ground |
| 4 |
Power Supply |
