Transmission Fluid Cooler - INGENIUM I4 2.0L Diesel (G1904868): Removal
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
General Equipment: 2 post lift
- Drain the transmission fluid system.
Refer to: TRANSMISSION FLUID DRAIN AND REFILL .
- Drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
- Remove the 3 clips securing the lower fender splash shield to the vehicle body.
- Remove the front left lower fender splash shield.
-
CAUTION: Be prepared to collect escaping coolant.

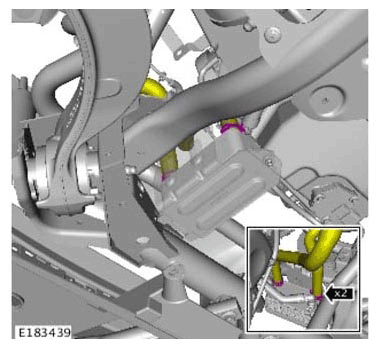

Release the 2 coolant pipes from the transmission cooler assembly.
-
CAUTION: Be prepared to collect escaping fluid.

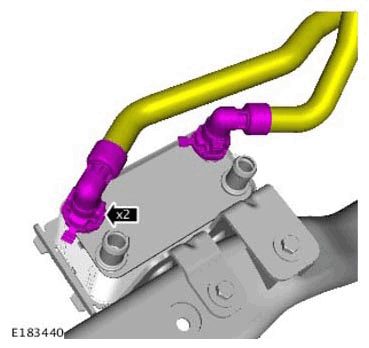

Release the 2 transmission cooler tubes from the transmission cooler assembly.
-
CAUTION: Be prepared to collect escaping fluid.

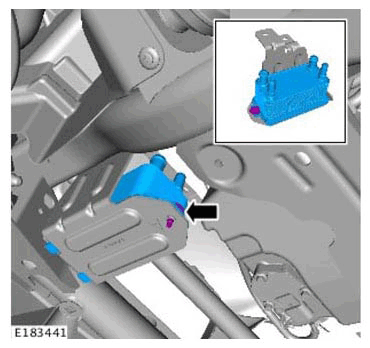

- Remove the bolt securing the transmission oil cooler assembly to the bracket.
- Remove the transmission fluid cooler.
