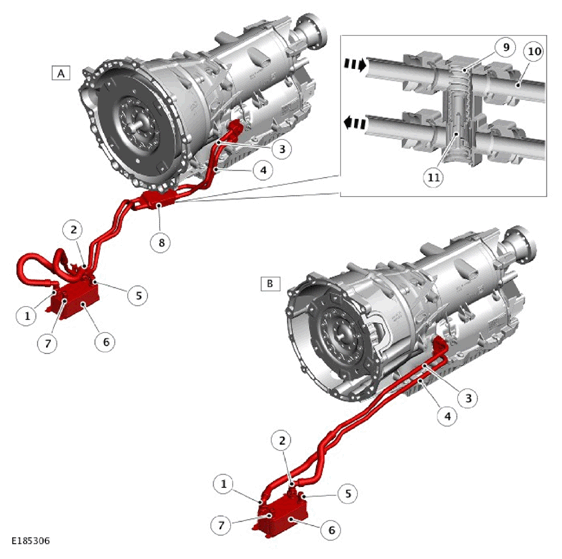

Component Location
WARNING: This page is about a different variant/trim than selected.
| ITEM | DESCRIPTION |
|---|---|
| A | Vehicles with Ingenium I4 2.0L Diesel engine |
| B | Vehicles with GTDi 2.0L Petrol engine |
| 1 | Connection - Automatic Transmission Fluid (ATF) inlet |
| 2 | Connection - ATF outlet |
| 3 | Return pipe - to transmission |
| 4 | Supply pipe - from transmission |
| 5 | Engine coolant outlet |
| 6 | Automatic Transmission Fluid (ATF) cooler |
| 7 | Engine coolant inlet |
| 8 | Thermostatic valve |
| 9 | Spring |
| 10 | Thermostatic valve body |
| 11 | Thermostatic wax element |
