Torque Specifications
NOTE:
Numbers with a green background are a single use component.

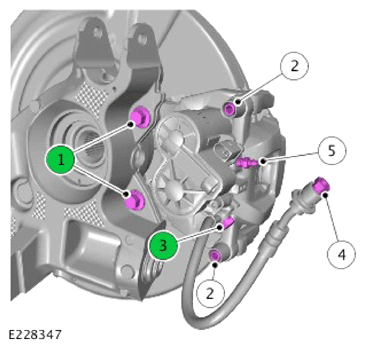

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

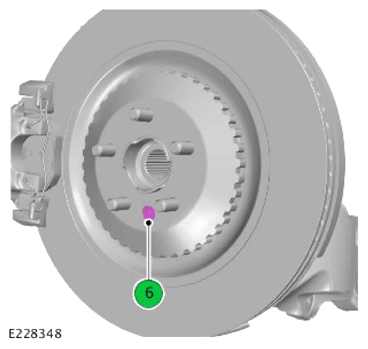

| COMPONENT TORQUE LOCATION |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
| 1 |
Brake caliper anchor plate bolt |
Stage 1 - 110 |
Stage 2 - 120 degrees |
Stage 1 - 81 |
Stage 2 - 120 degrees |
| 2 |
Brake caliper slide pin bolts |
28 |
21 |
| 3 |
Brake hose to brake caliper banjo bolt |
32 |
23 |
| 4 |
Brake pipe union |
15 |
11 |
| 5 |
Rear brake caliper bleed screw |
15 |
11 |
| 6 |
Brake disc retaining bolt |
10 |
7 |
SIZE DESCRIPTION
| DESCRIPTION |
SIZE IN MM |
| Diameter |
396 |
| New thickness |
26 |
| Minimum thickness |
24 |
