Brake Booster And Brake Master Cylinder
NOTE:

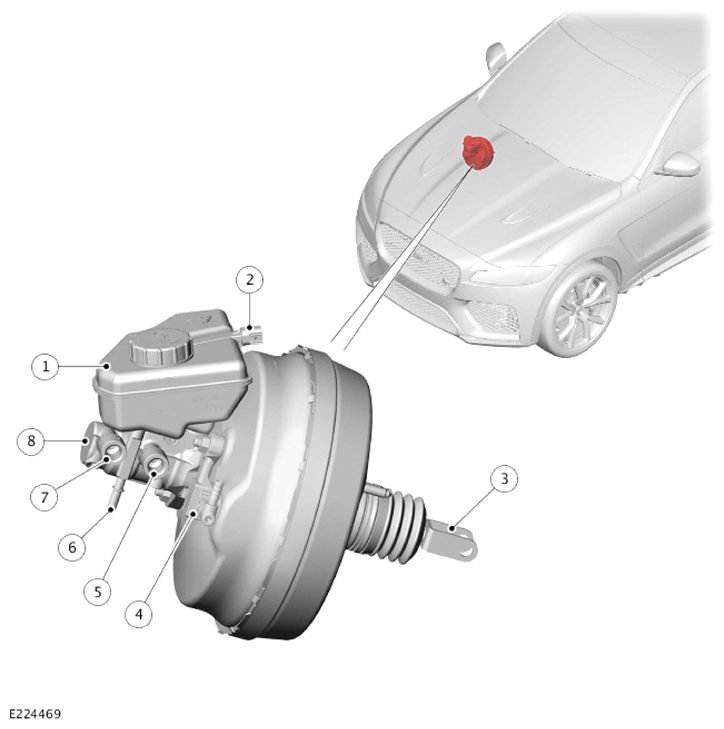

Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake fluid reservoir |
| 2 | Brake fluid level sensor electrical connector |
| 3 | Actuator rod |
| 4 | Brake vacuum sensor |
| 5 | Primary circuit outlet port |
| 6 | Service connector |
| 7 | Secondary circuit outlet port |
| 8 | Brake master cylinder |
The brake booster gives a boost ratio of 7.5: 1 to the effort applied to the brake pedal. The brake booster is attached to the driver side of the engine compartment bulkhead with a gasket, 2 studs and nuts.
The input actuator rod within the brake booster is connected to the brake pedal. The output actuator rod locates in the primary piston of the brake master cylinder.
