Engine Coolant Level Switch (G2424647): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the coolant expansion tank.
Refer to: COOLANT EXPANSION TANK .
CAUTION: Do not use excessive force to remove the coolant level switch. Failure to follow this instruction may result in damage to vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

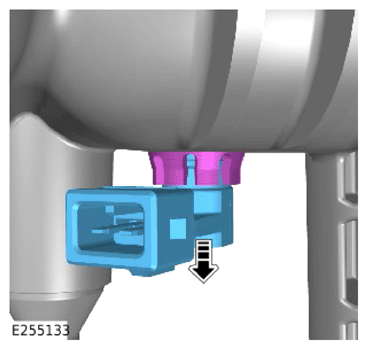

- Release the engine coolant level switch from the coolant expansion tank.
- Remove the engine coolant level switch.
