Coolant Pump: Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Remove the front right wheel and tire.
Refer to: WHEEL AND TIRE .
Remove the front right wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

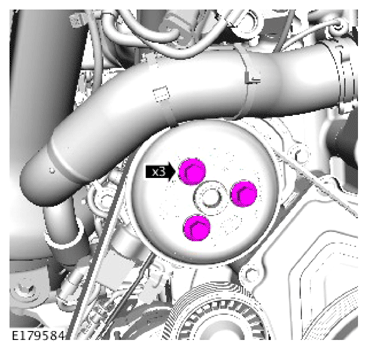

Loosen the coolant pump pulley bolts but do no fully remove.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

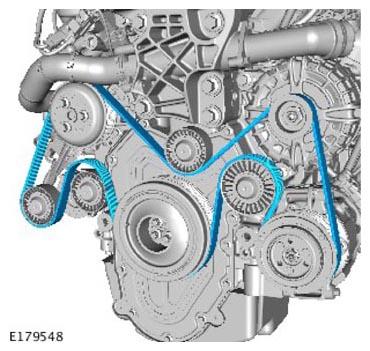

- Release the tension from the accessory drive belt.
- Using a suitable tool, lock the tensioner arm in the position illustrated.
NOTE: Note the position of the accessory drive belt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

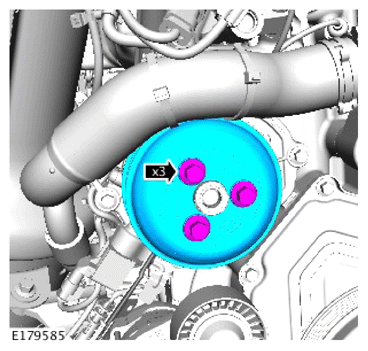

Remove the coolant pump pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

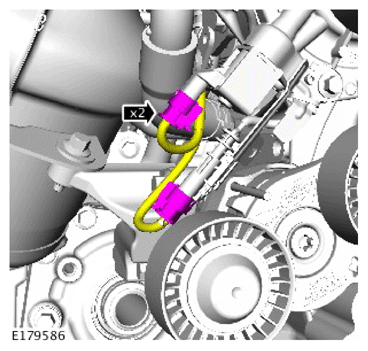

Disconnect the 2 electrical connectors.
CAUTION:
- Be prepared to collect escaping coolant.
- Inspect the coolant pump gasket for damage. If any damage is visible, a new coolant pump gasket must be installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

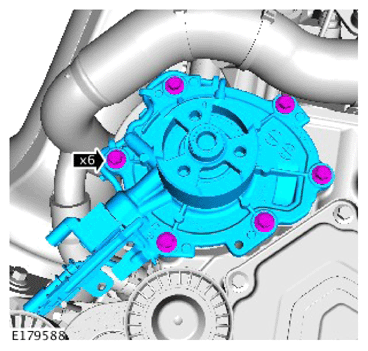

Remove the coolant pump.
