Instrument Cluster - Virtual Display

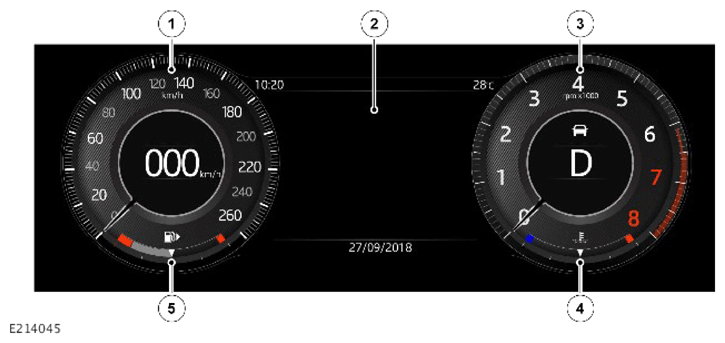

| ITEM | DESCRIPTION |
|---|---|
| 1 | Speedometer |
| 2 | Information and message center |
| 3 | Tachometer |
| 4 | Temperature gauge |
| 5 | Fuel gauge |
The Instrument Cluster (IC) virtual display has the same information as the IC conventional display.
The instruments are driven by the same signals as the IC. They are displayed on a Thin Film Transistor (TFT) screen.
The tachometer is driven by an engine speed signal transmitted on the HS CAN powertrain systems bus from the PCM. The signal is derived from the Crankshaft Position (CKP) sensor.
