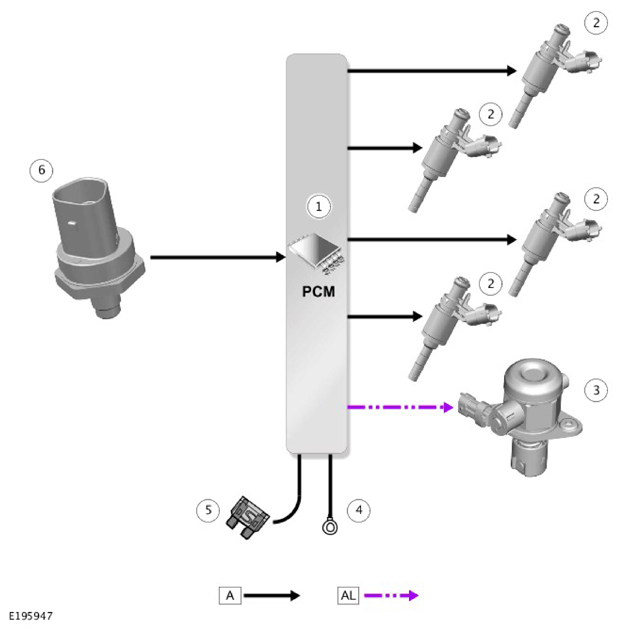

Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Fuel injector |
| 3 |
Fuel metering valve - High Pressure (HP) fuel pump |
| 4 |
Ground |
| 5 |
Power supply |
| 6 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
