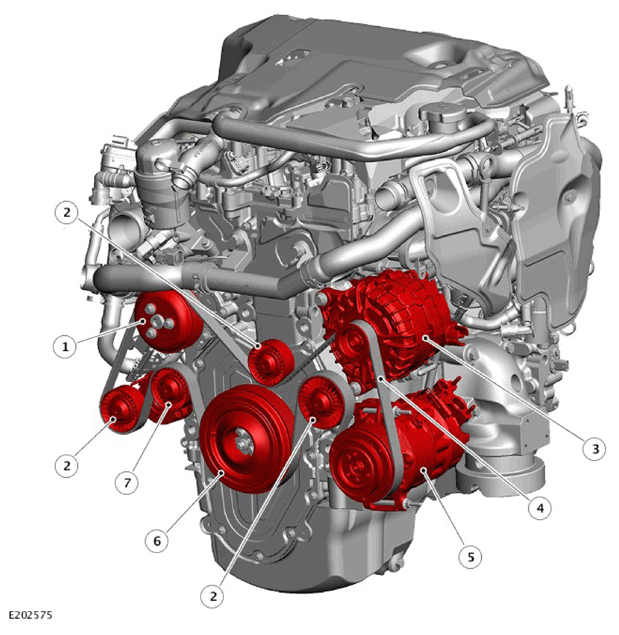

Component Location

WARNING: This page is about a different car, the 2018 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

ITEM	DESCRIPTION
1	Coolant pump pulley
2	Idler pulley
3	Generator
4	Accessory drive belt
5	Air Conditioning (A/C) compressor
6	Crankshaft drive pulley
7	Belt tensioner
