Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
Avoid flames, sparks or lighted substances.
Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.

CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

All vehicles

Refer to: Diesel Fuel System Health and Safety Precautions .
Refer to: Fuel System Pressure Release .
Refer to: Battery Disconnect and Connect .
Raise and support the vehicle.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

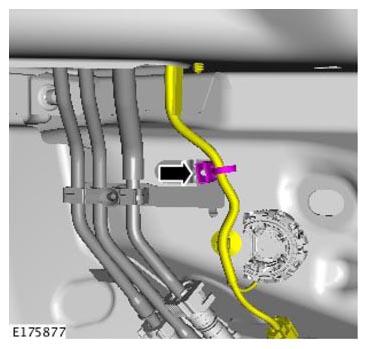

Remove the front left wheel and tire.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Refer to: Wheel and Tire .
Torque Specification: 55 Nm

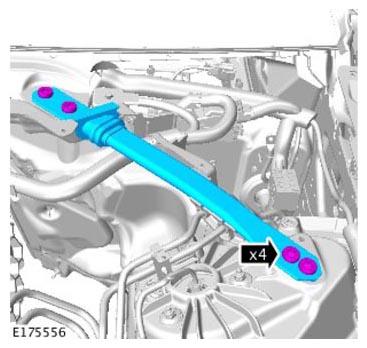

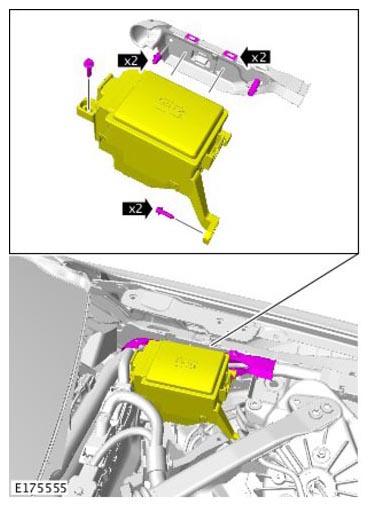

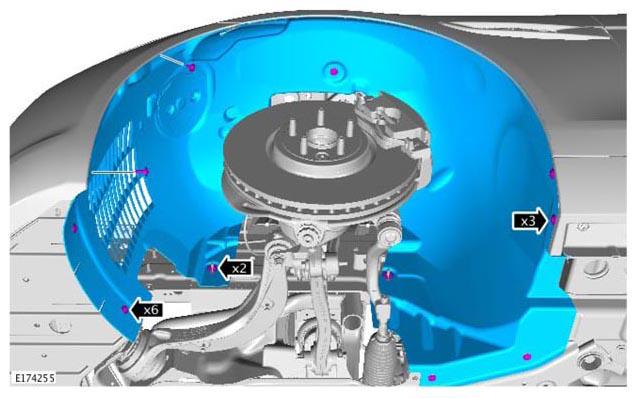

Right-hand drive vehicles
Torque Specification: 7 Nm

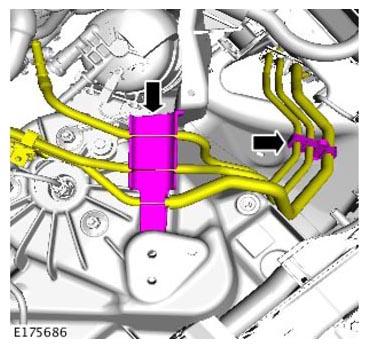

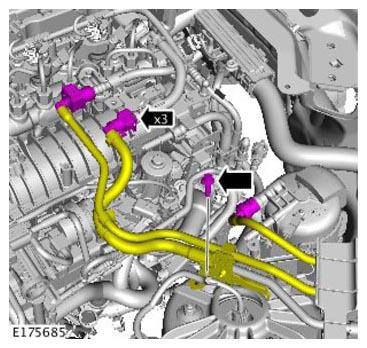

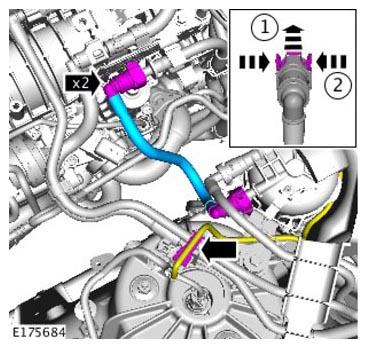

Vehicles with 2.0L diesel engine
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque Specification: 7 Nm

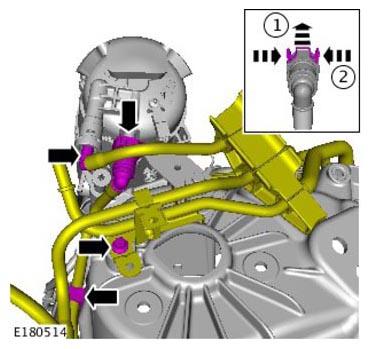

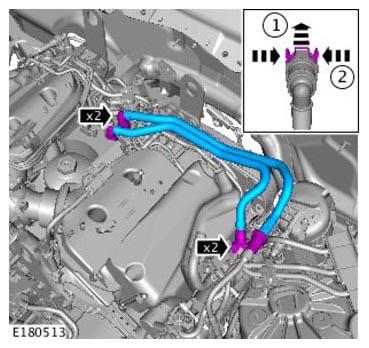

Vehicles with 3.0L diesel engine
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque Specification: 7 Nm

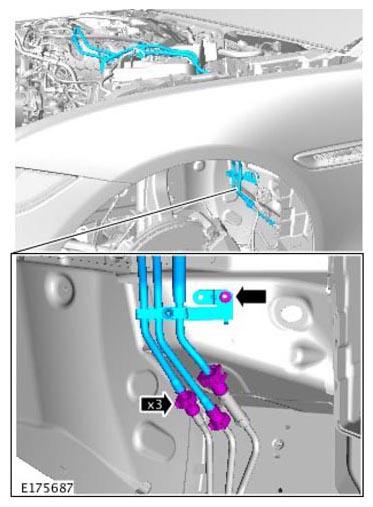

All vehicles
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Torque Specification: 7 Nm
