Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.
  • Avoid flames, sparks or lighted substances.
  • Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
CAUTION: Before disconnecting or removing components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect And Connect .

  2. Refer to: Fuel Pump and Sender Unit .

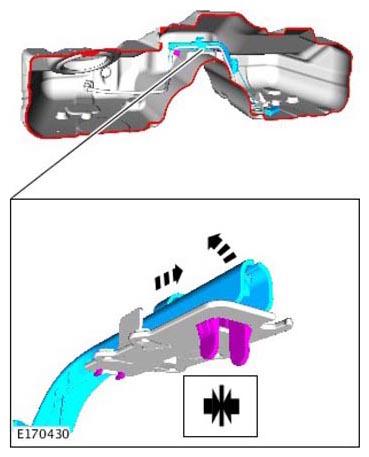

  3. CAUTION: Take extra care not to damage the fuel tank level sensor float and arm
    G11314723
