Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  1. Refer to: Battery Disconnect and Connect .
  2. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  3. Refer to: Cooling Fan Motor and Shroud .

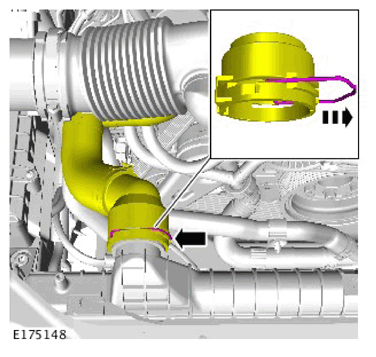

  4. G11307266

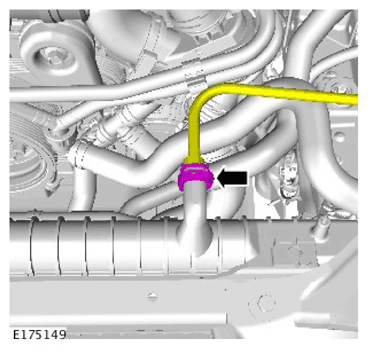

  5. G11307267

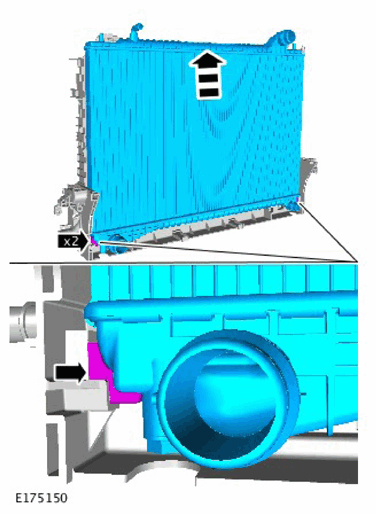

  6. G11307268
