Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Some components shown removed for clarity.
  1. Refer to: Battery Disconnect and Connect .
  2. Raise and support the vehicle.
    WARNING: Make sure to support the vehicle with axle stands.
  3. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

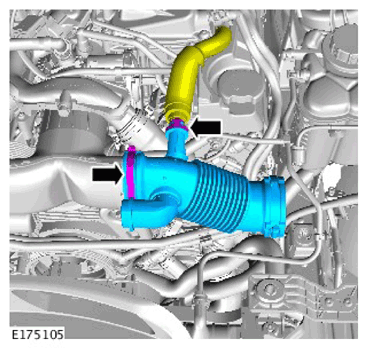

  4. G11307229

    Torque Specification: 3.5 Nm

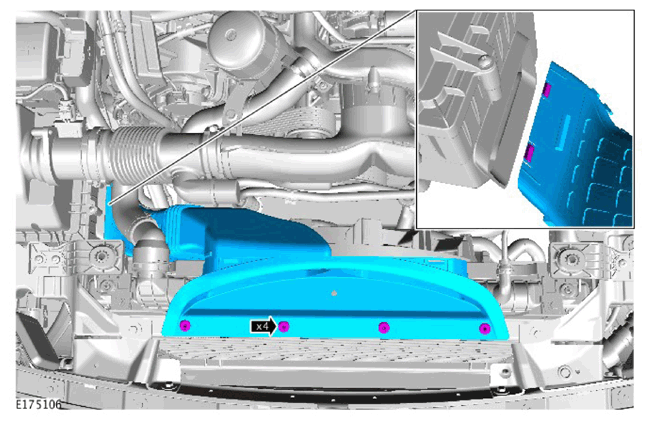

  5. G11307230

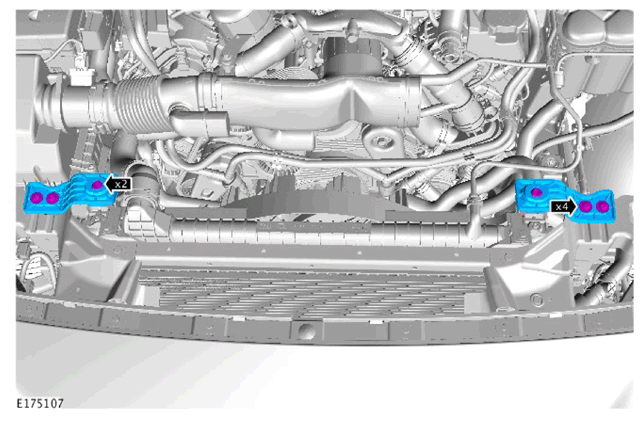

  6. G11307231

    Torque Specification: 9 Nm

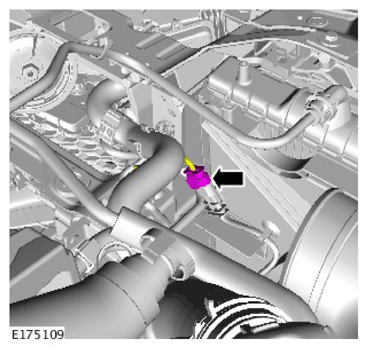

  7. G11307232

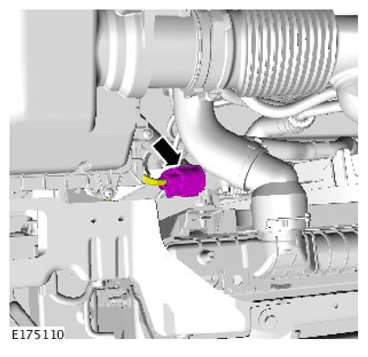

  8. G11307233
  9. Refer to: Cooling System Draining, Filling And Bleeding .
  10. Refer to: Air Deflector .
  11. CAUTION: Be prepared to collect escaping coolant.

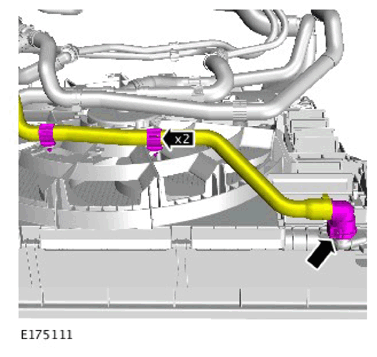

    G11307234

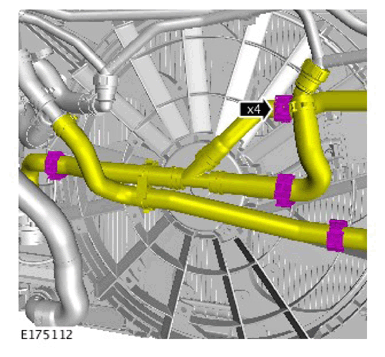

  12. G11307235
  13. CAUTION: Be prepared to collect escaping coolant.

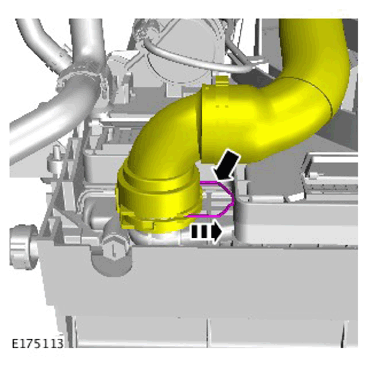

    G11307236

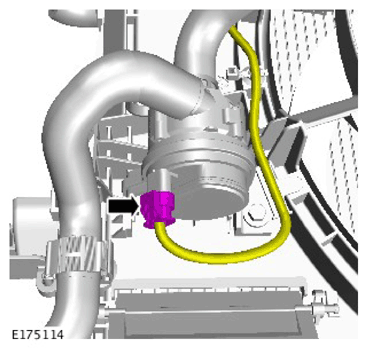

  14. G11307237

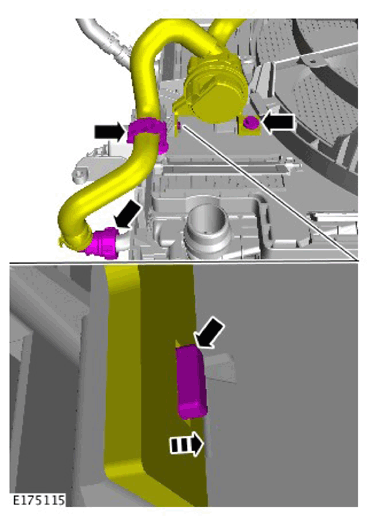

  15. CAUTION: Be prepared to collect escaping coolant.
    G11307238

    Torque Specification: 9 Nm

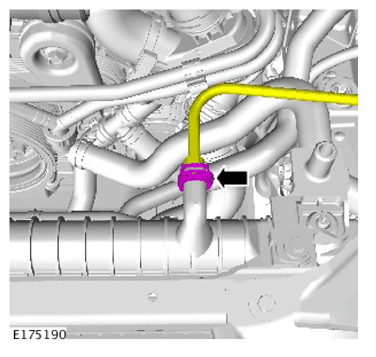

  16. G11307253

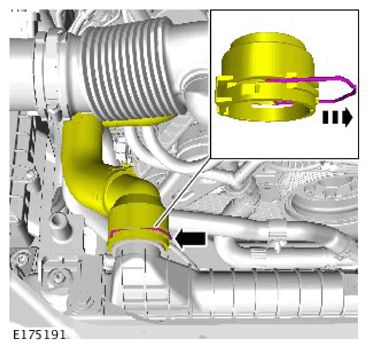

  17. G11307254
  18. Refer to: Front Bumper .
  19. G11307165
  20. CAUTION:
    • Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    • Make sure that all openings are sealed. Use new blanking caps.
    • A new O-ring seal is to be installed.
    • Take care not to damage the O-ring seals during installation.
    G11307166

    Torque Specification: 20 Nm

  21. CAUTION:
    • Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.
    • Make sure that all openings are sealed. Use new blanking caps.
    • A new O-ring seal is to be installed.
    • Take care not to damage the O-ring seals during installation.
    G11307167

    Torque Specification: 20 Nm

  22. CAUTION: Make sure that the cooling module is supported for this step.
    G11307168

    Torque Specification: 9 Nm

  23. CAUTION: Make sure that the cooling module is supported for this step.
    G11307169

    Torque Specification: 9 Nm

  24. G11307170
