Control Diagram

WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

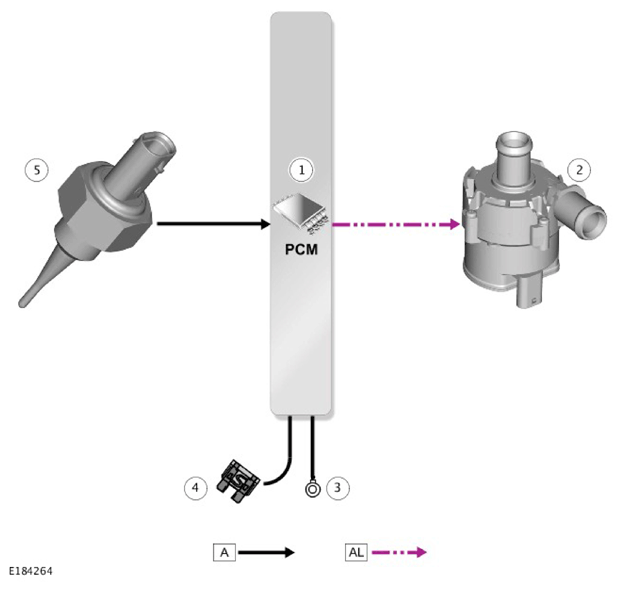

G11307280

A = HARDWIRED; AL = PULSE WIDTH MODULATION (PWM).

ITEM DESCRIPTION
1 Powertrain Control Module (PCM)
2 Charge air coolant pump
3 Power supply
4 Ground
5 Charge air temperature sensor
