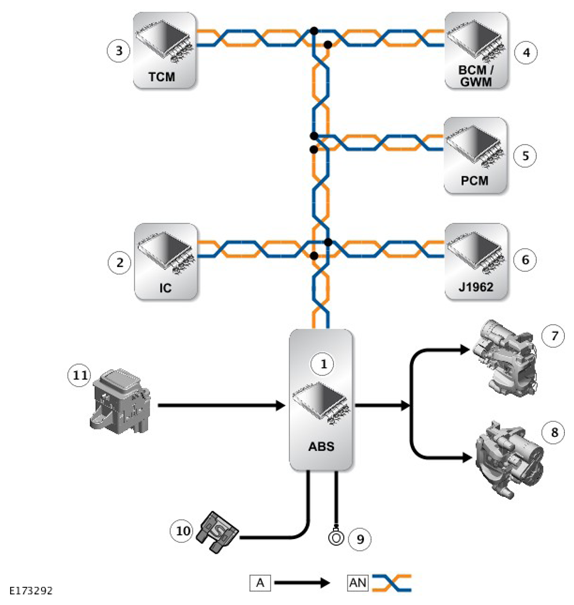

Input/Output Diagram
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = Hardwired; O = Lin Bus; AN = High Speed (HS) Computer Area Network (CAN) powertrain Bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS control module |
| 2 | Instrument Cluster (IC) |
| 3 | Transmission Control Module (TCM) (automatic transmission vehicles only) |
| 4 | Body Control Module/Gateway Control Module (BCM/GWM) |
| 5 | Engine Control Module (ECM) |
| 6 | Diagnostic connector J1962 |
| 7 | Left Electronic Park Brake (EPB) actuator |
| 8 | Right Electronic Park Brake (EPB) actuator |
| 9 | Ground |
| 10 | Fuse |
| 11 | Electronic Park Brake (EPB) switch |
