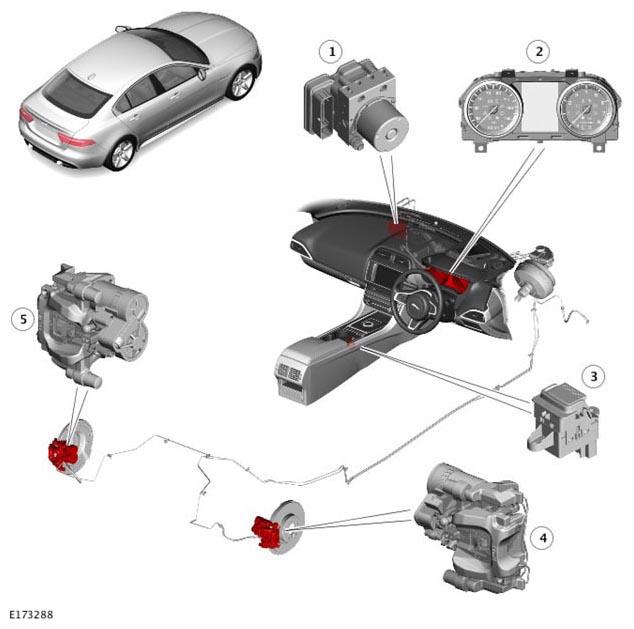

Component Location
WARNING: This page is about a different car, the 2018 Jaguar XE and 2017 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) vehicle is shown. The Left Hand Drive (LHD) vehicle is similar.
| ITEM |
DESCRIPTION |
| 1 |
Anti-lock Brake System (ABS) control module |
| 2 |
Instrument Cluster (IC) |
| 3 |
Electric Park Brake (EPB) switch |
| 4 |
Right EPB actuator |
| 5 |
Left EPB actuator |
