Removal And Installation: Removal

CAUTION: Use a suitable trim tool.

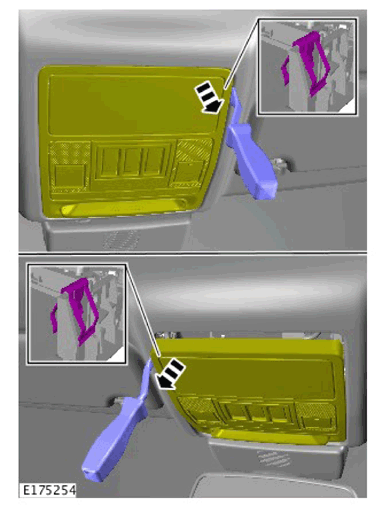

  1. G11312207

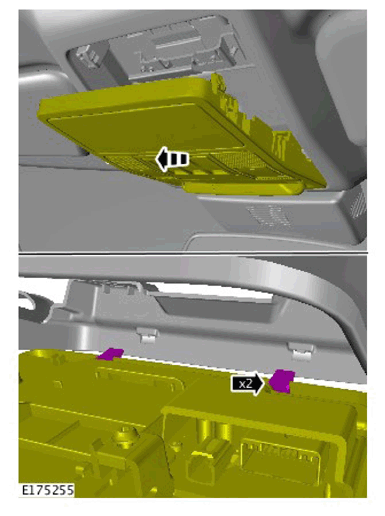

  2. G11312208
  3. CAUTION: Take extra care not to damage the wiring harnesses.

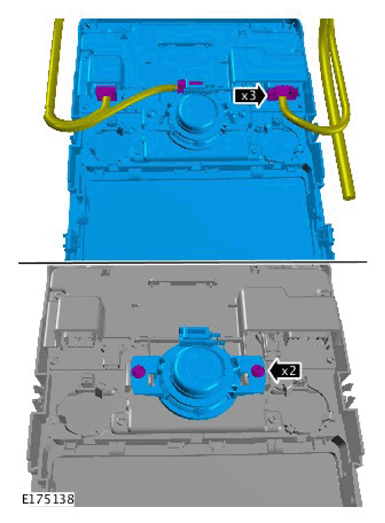

    G11312209

    Torque Specification: 0.66 Nm

  4. CAUTION: Take extra care not to damage the clips.
    NOTE: If equipped.

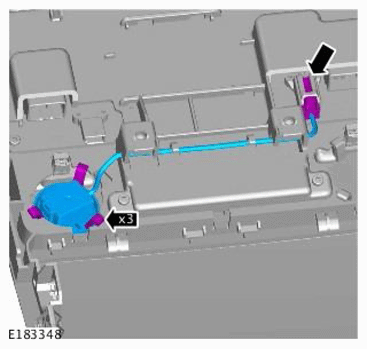

    G11452768
