Removal And Installation: Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Supplemental Restraint System (SRS) Health And Safety Precautions
  2. Refer to: Battery Disconnect And Connect
  3. Refer to: Steering Wheel

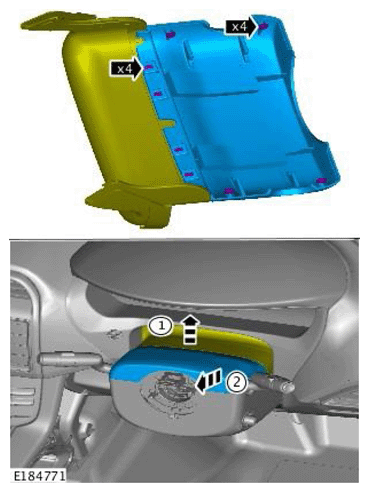

  4. G11452753

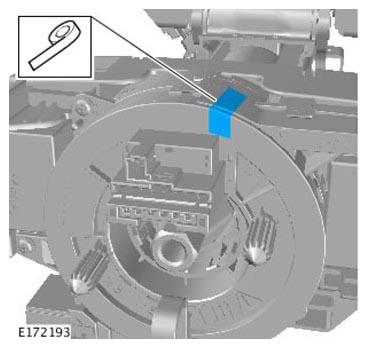

  5. Secure with adhesive tape.
    G11308806
    CAUTION: Make sure that the clockspring rotor does not rotate.
  6. Vehicles with electronic steering column.

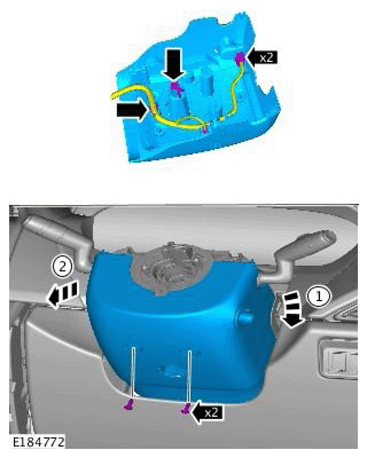

    G11452755

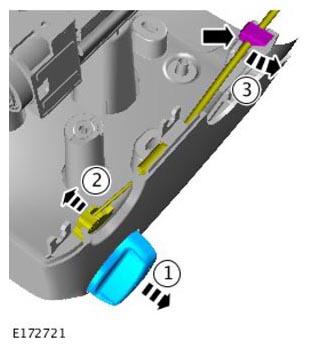

  7. G11308808
    1. 6. Vehicles with manual steering column.

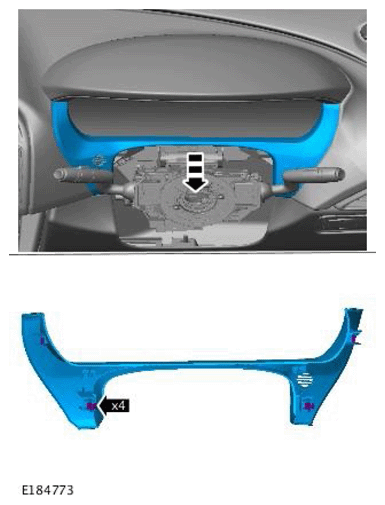

  8. G11452757

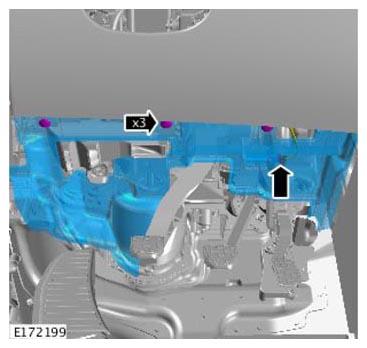

  9. G11308810

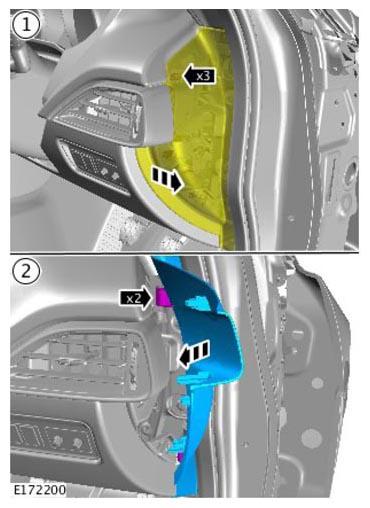

  10. G11308811

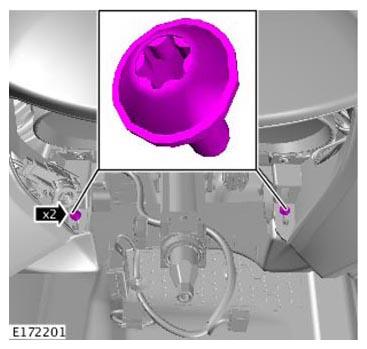

  11. G11308812

    Torque Specification: 5 Nm

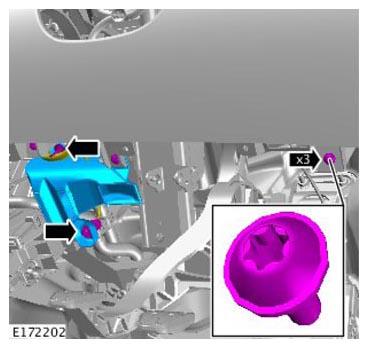

  12. G11308813

    Torque Specification: 5 Nm

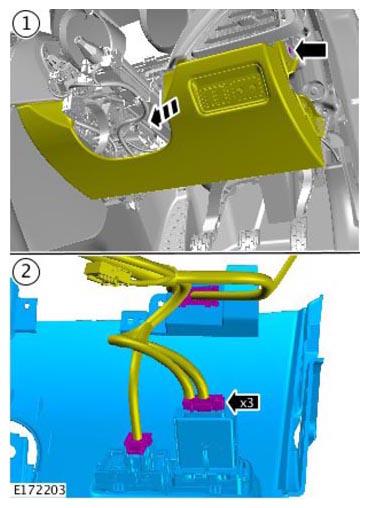

  13. G11308814
  14. Do not disassemble further if removed for access only

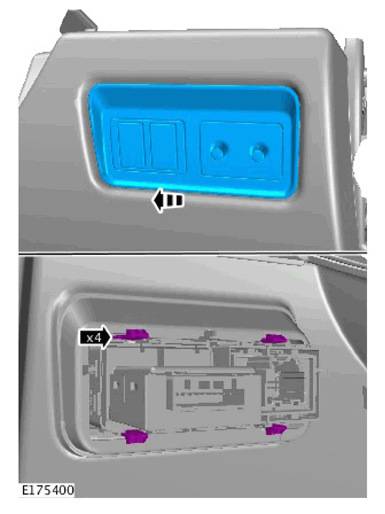

  15. G11312206
