Removal And Installation: Removal
CAUTION:

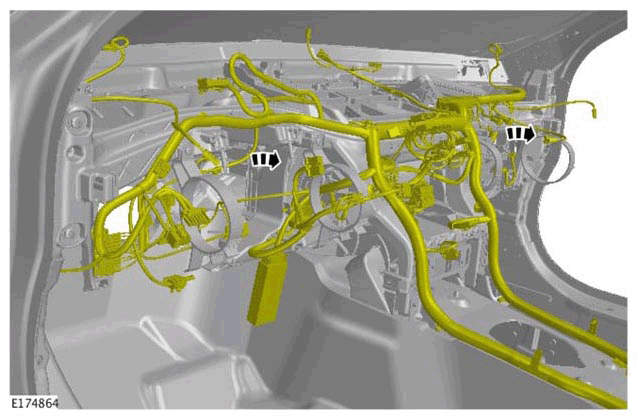

Take extra care not to damage the wiring harness clips.
NOTE:
Note the position of the wiring harnesses to aid installation.
All vehicles
- Make the SRS system safe.
Refer to: Battery Disconnect And Connect
- Raise and support the vehicle.
- Refer to: Cooling System Partial Draining and Vacuum Filling
- Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging
-
NOTE: This procedure must be carried out both sides.
Refer to: Front Row Seat Removal And Installation

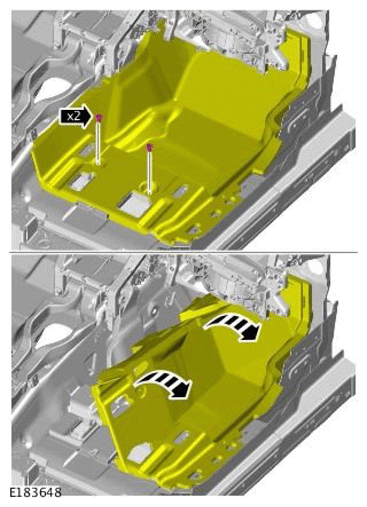

- Refer to: Steering Column
- Refer to: Instrument Panel Console
- Refer to: Secondary Bulkhead Panel RH - TDV6 3.0L Diesel

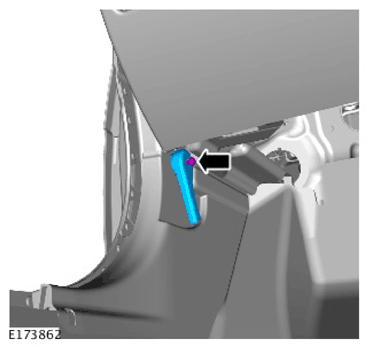

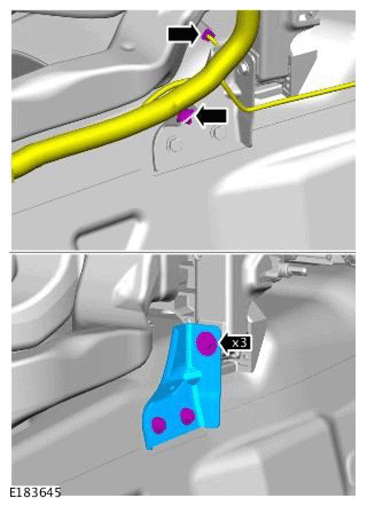

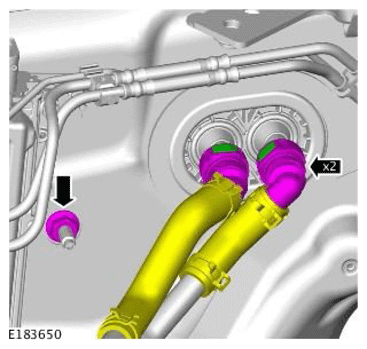

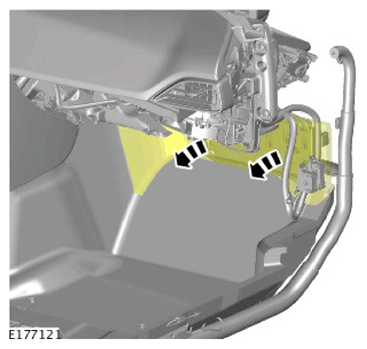

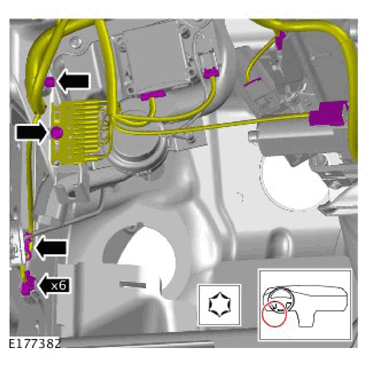

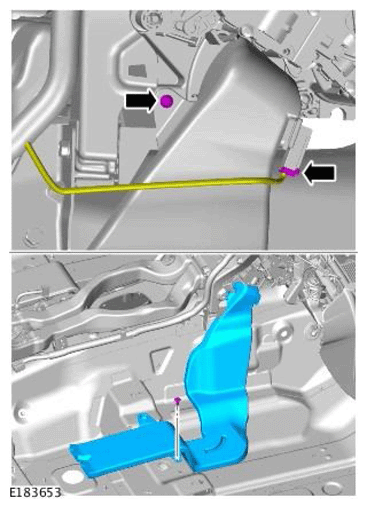

Left-hand drive vehicles
- Refer to: Secondary Bulkhead Panel LH - TDV6 3.0L Diesel
-

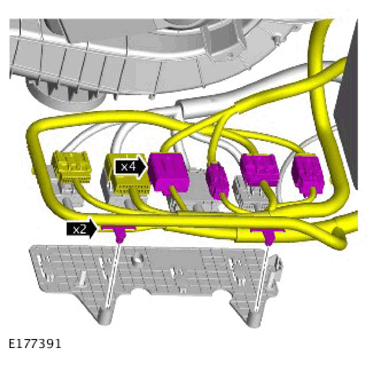

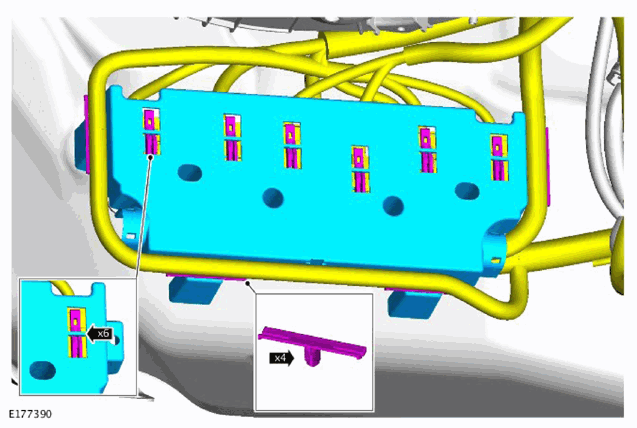

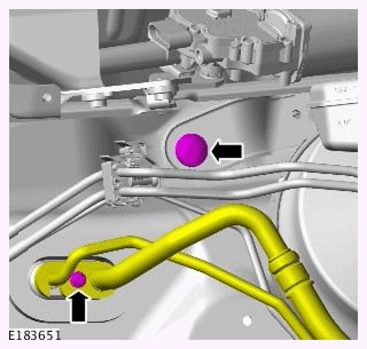

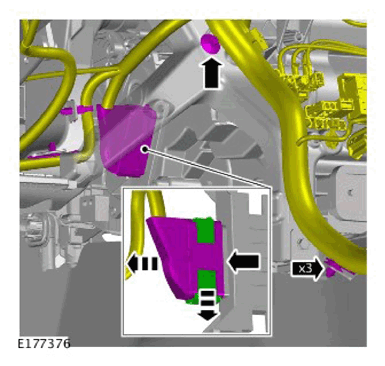

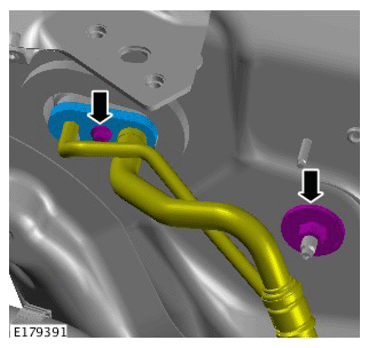

CAUTION: Be prepared to collect escaping coolant.
-
CAUTION: Make sure that all openings are sealed. Use new blanking caps.

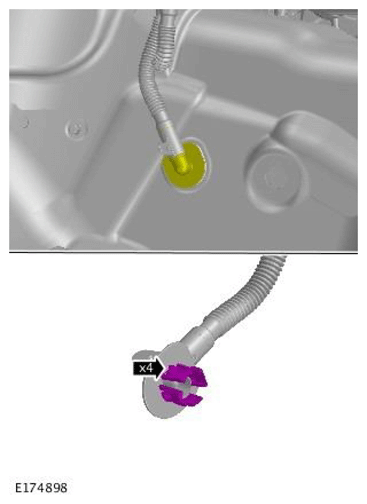

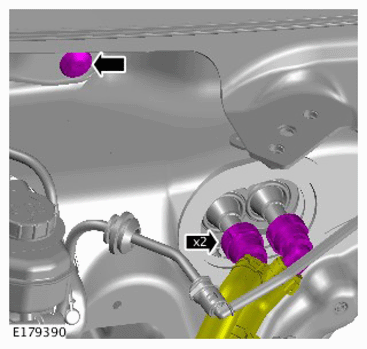

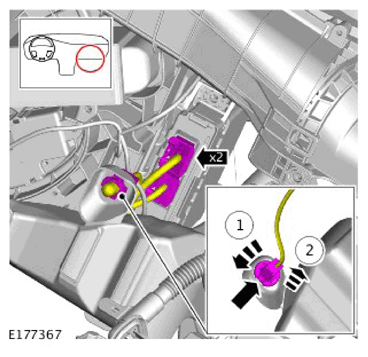

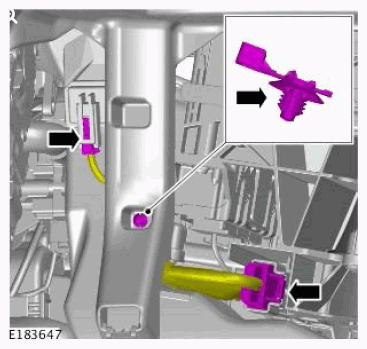

Right-hand drive vehicles
-

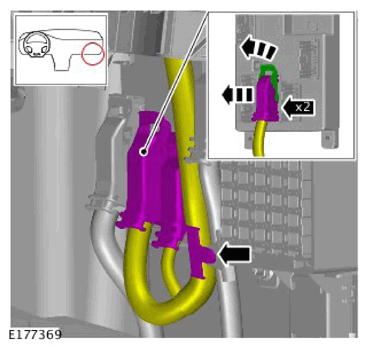

CAUTION: Be prepared to collect escaping coolant.
-
NOTE: Make sure that all openings are sealed. Use new blanking caps.
Torque Specification: 9 Nm

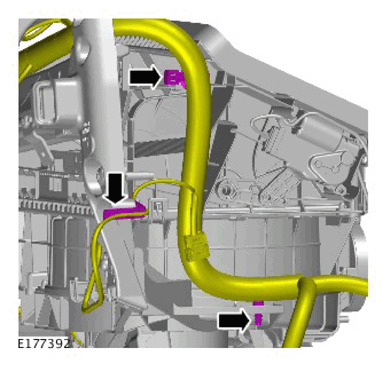

All vehicles
-

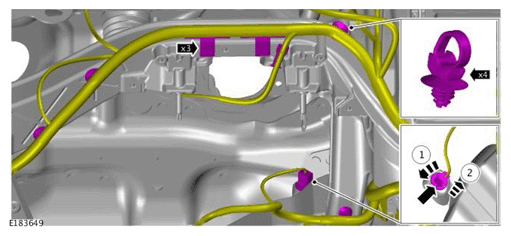

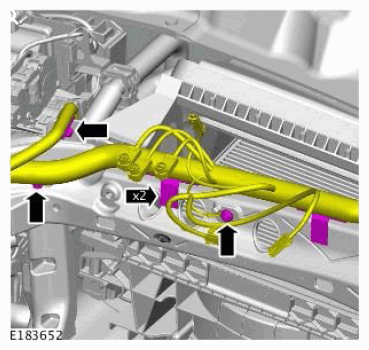

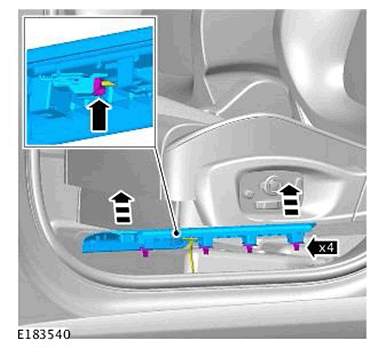

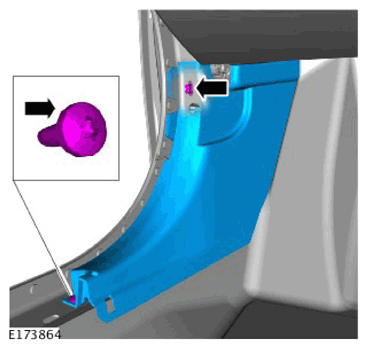

CAUTION: Make sure that the component is correctly located on the locating dowels.NOTE: Install new retaining clips.
Renew Part: Treadplate clips
Torque Specification: 3.5 Nm
-
NOTE: The step must be carried out on both sides.
Torque Specification: 3.5 Nm
-
NOTE: The step must be carried out on both sides.
-

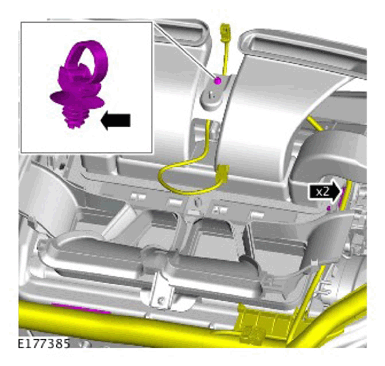

NOTE: The step must be carried out on both sides.
Torque Specification: 1.5 Nm
-
NOTE: The step must be carried out on both sides.
Torque Specification: 9 Nm
-
NOTE: The step must be carried out on both sides.

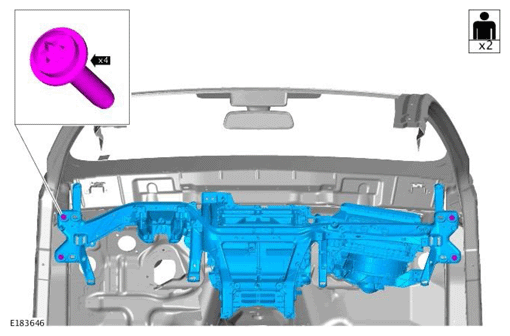

Torque Specification: 20 Nm
-

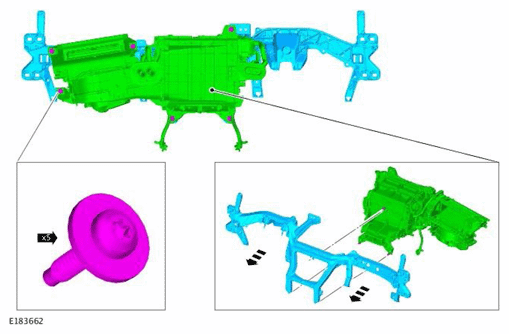

NOTE: Do not disassemble further if the component is removed for access only.
