Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

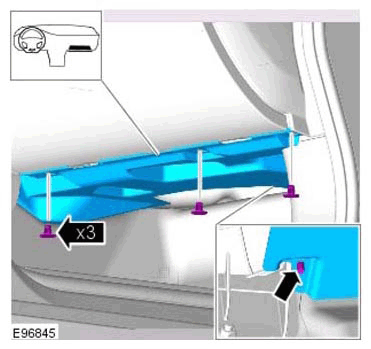

  1. G11314928

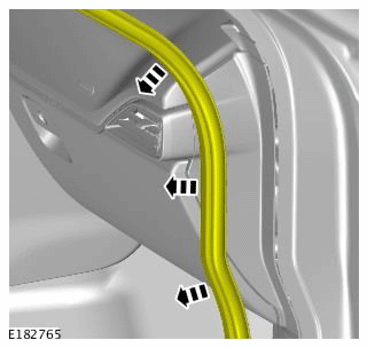

  2. G11452736

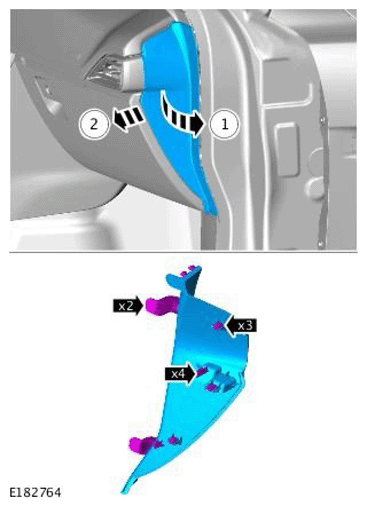

  3. G11452737

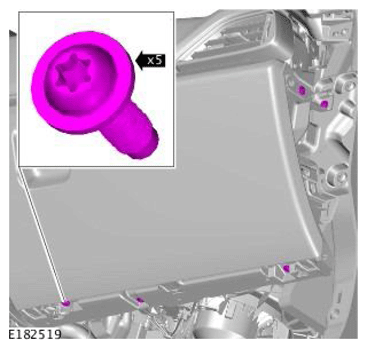

  4. G11452738

    Torque Specification: 9 Nm

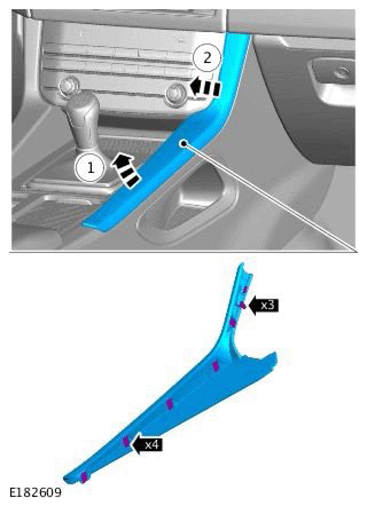

  5. G11452696

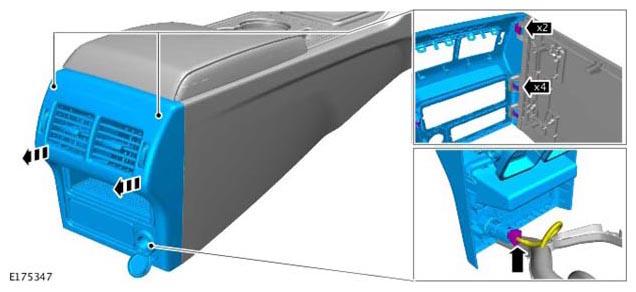

  6. G11305693

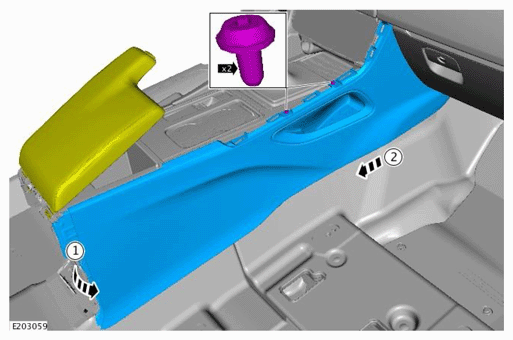

  7. G11452741
  8. NOTE: Some components shown removed for clarity.

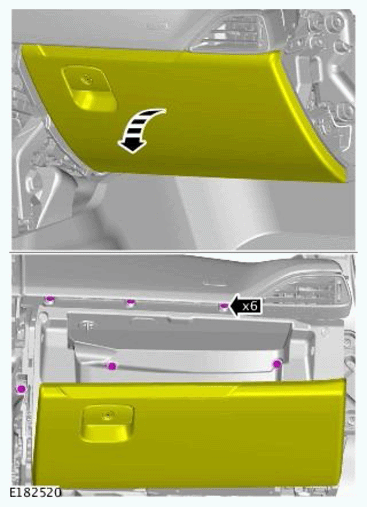

    G11452742

    Torque Specification: 9 Nm

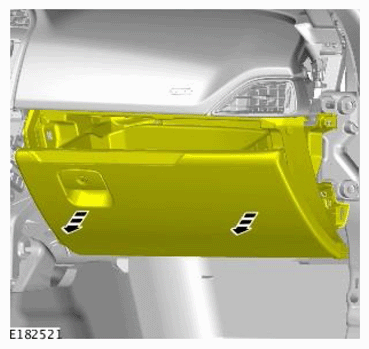

  9. G11452743
  10. NOTE: If equipped.

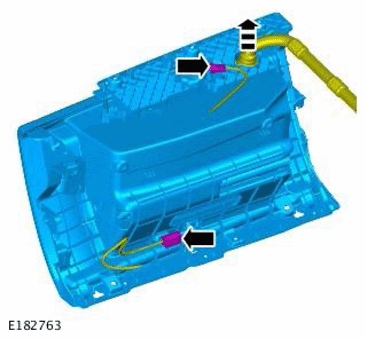

    G11452744
