Tire Pressure Sensor (G2163965): Installation
-
CAUTION: Make sure that the mating faces are clean and free of foreign material.

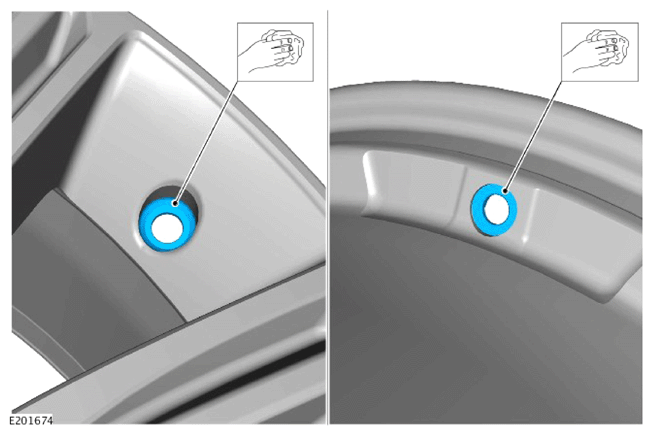

Clean the valve seat on the wheel.
-
CAUTION:
- If the existing tire pressure sensor is to be installed, a new washer, seal and nut must be installed.
-
- Do not apply any lubricant to the new valve.
- Do not use compressed air to clean the sensor. Do not clean the sensor with solvents or cleaning agents of any type, use a clean dry cloth.
NOTE: Make sure that the components are installed in correct orientation.Install the sensor.
Torque : 8 Nm
-
CAUTION:
- Make sure to aid the installation of the tire with a lever bar to avoid damage to the tire pressure sensor.
- Make sure to protect the surrounding paintwork.
Install the tire to the wheel.
General Equipment: Tyre changer

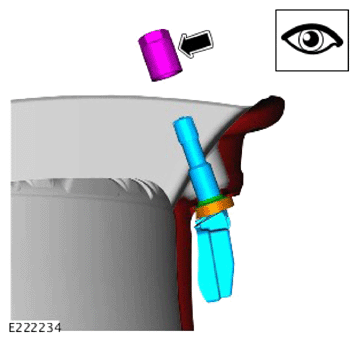

- Install the valve.
-
WARNING: Take extra care not to bend or damage the valve stem during inflation.

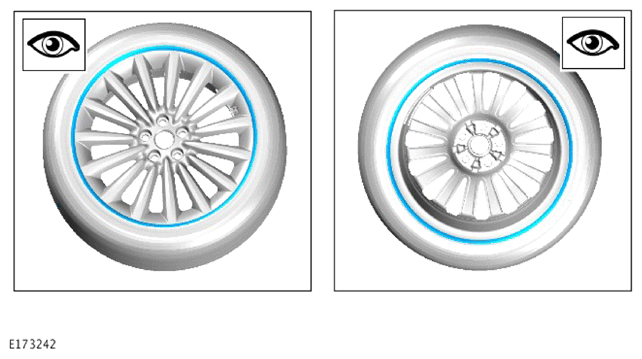

Inflate the tire until the tire is fully seated on to the wheel.
- Inflate the tire to the maximum pressure as stated on the tire sidewall and then deflate to the recommended pressure.
Refer to: SPECIFICATIONS .
- Install the cap.
- Balance the wheel and tire assembly.
General Equipment: Wheel/Tyre balancer
- Install the wheel and tire.
Refer to: WHEEL AND TIRE .
- If a new component has been installed, configure using the Jaguar Land Rover approved diagnostic equipment.
General Equipment: Jaguar Land Rover approved diagnostic equipment
