Tire Pressure Monitor Module (G2163964): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
The ignition must be switched off.

Remove the front overhead console.
Refer to: OVERHEAD CONSOLE .
Remove the left and right A-pillar trim panels.
Refer to: A-PILLAR TRIM PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

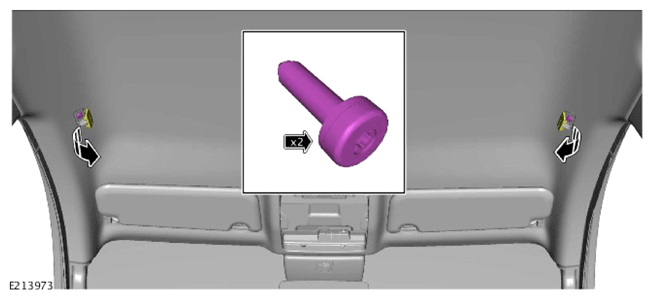

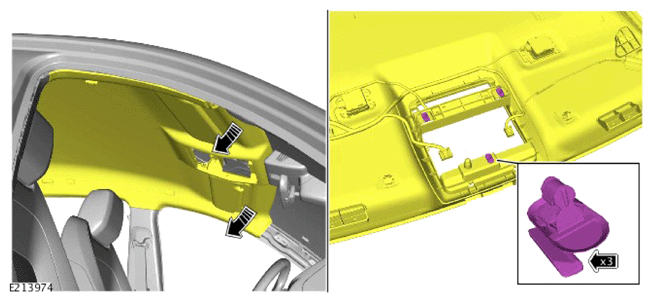

- Release the 2 front airbag covers on both sides.
- Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

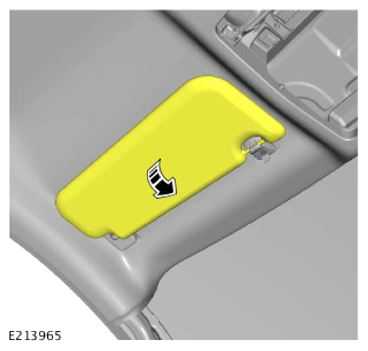

Fold sun visors down on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the sun visors from the brackets on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

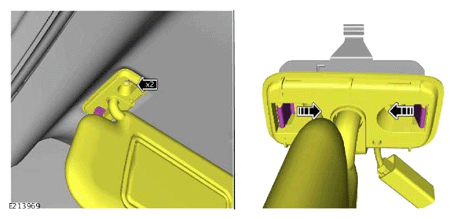

Open the 2 sun visor bracket covers.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

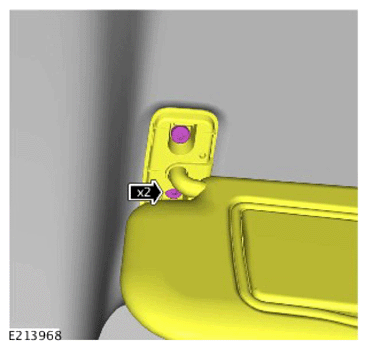

- Remove the 2 screws.
- Remove the sun visor brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

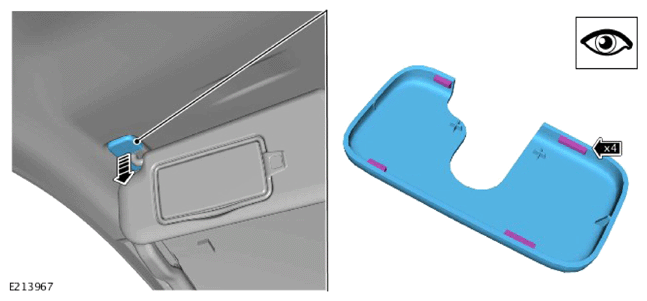

Remove the 2 sun visor screw covers on both sides.
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

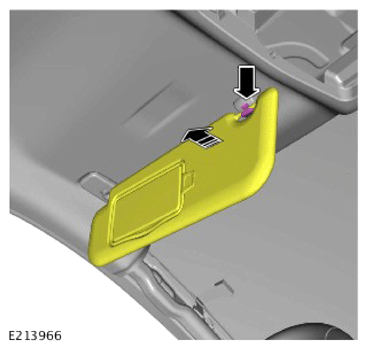

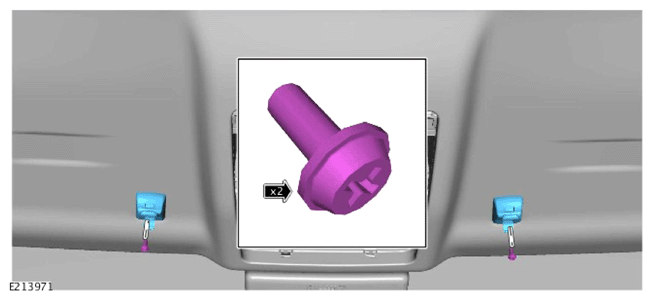

Remove the 2 screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the sun visors from the roof on both sides.
CAUTION: Take extra care not to damage the component.

NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully release the headliner front section.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

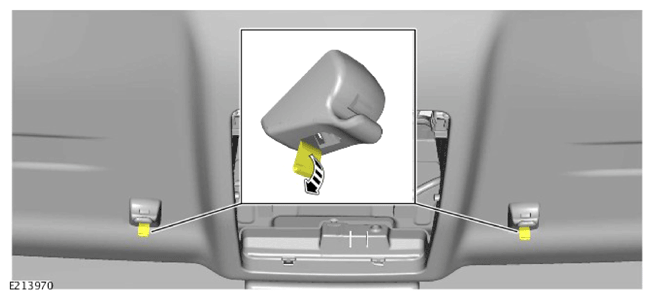

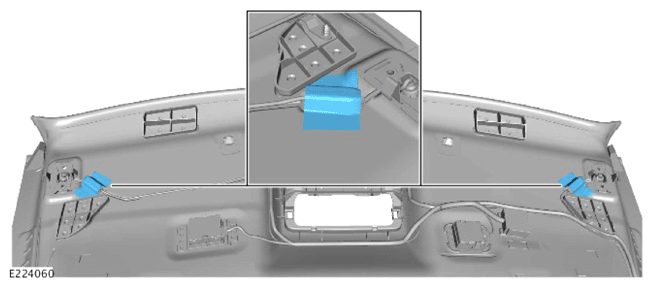

Remove the 2 tapes on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

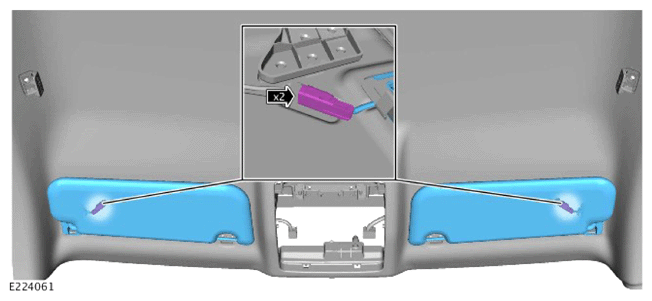

- Disconnect the 2 electrical connectors.
- Remove the sun visors on both sides.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

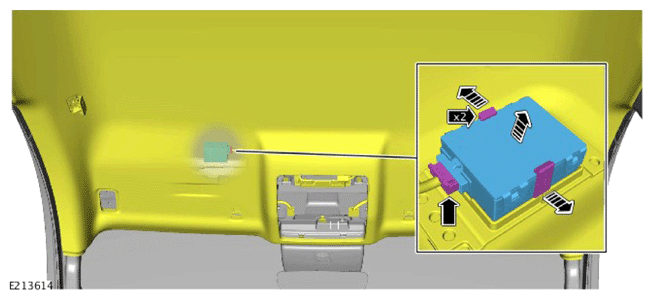

- Disconnect the electrical connector.
- Remove the tire pressure monitor module.
