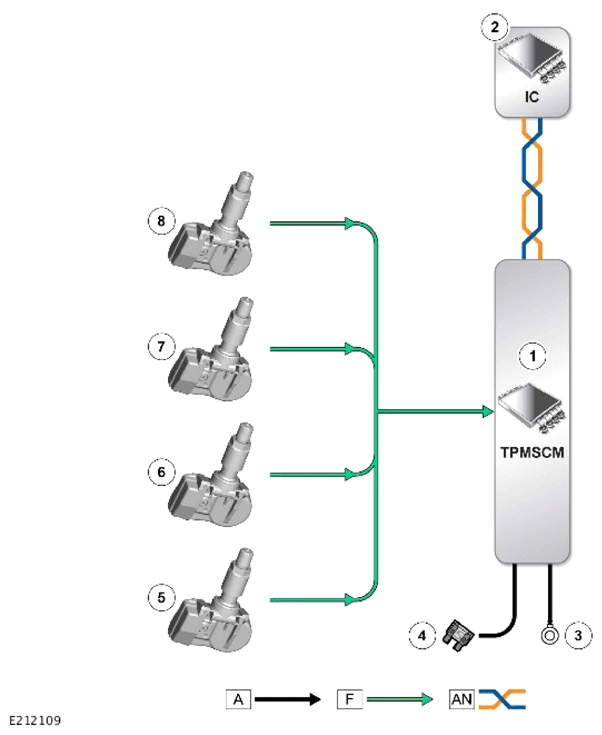

Control Diagram
A = HARDWIRED: AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: F = RADIO FREQUENCY (RF) TRANSMISSION.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Tire Pressure Monitoring System Control Module (TPMSCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Ground |
| 4 | Power supply |
| 5 | Front left tire pressure sensor |
| 6 | Front right tire pressure sensor |
| 7 | Rear left tire pressure sensor |
| 8 | Rear right tire pressure sensor |
