Thermostat (G2110293): Removal

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the cooling module.
Refer to: COOLING MODULE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

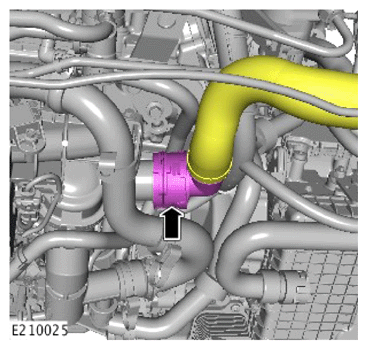

Disconnect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.
- Disconnect the electrical connector and release the purge valve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

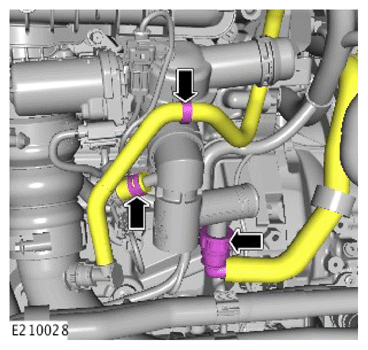

- Release the vacuum pipe.

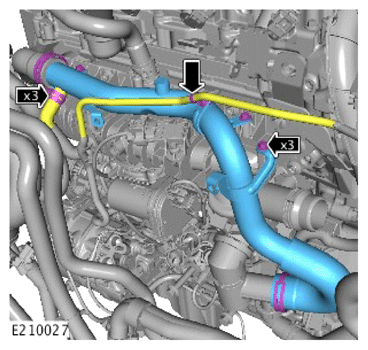

- Release the 3 coolant hose clamps.
- Remove the 3 bolts.
- Remove the bypass coolant pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

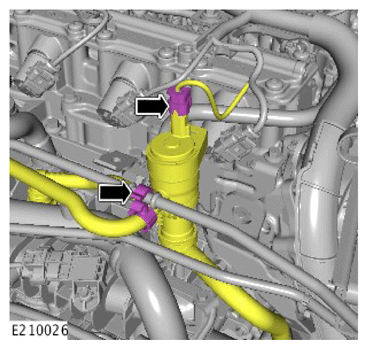

- Release the vacuum pipe clip.
- Release the 2 coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

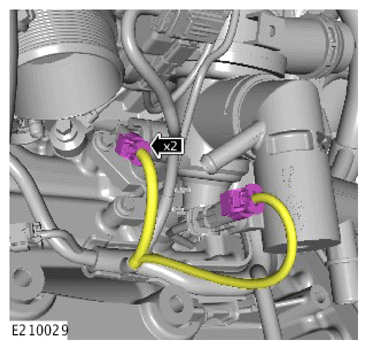

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

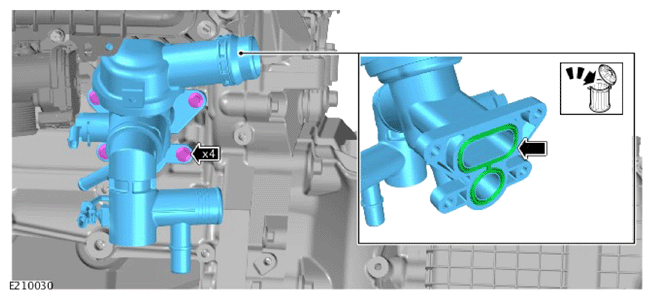

Remove the thermostat housing and discard the gasket.
