OEM Wiring Diagrams -- E-Pace X540
>>
501-11 Glass, Frames And Mechanisms
>>
Window lift
Window lift

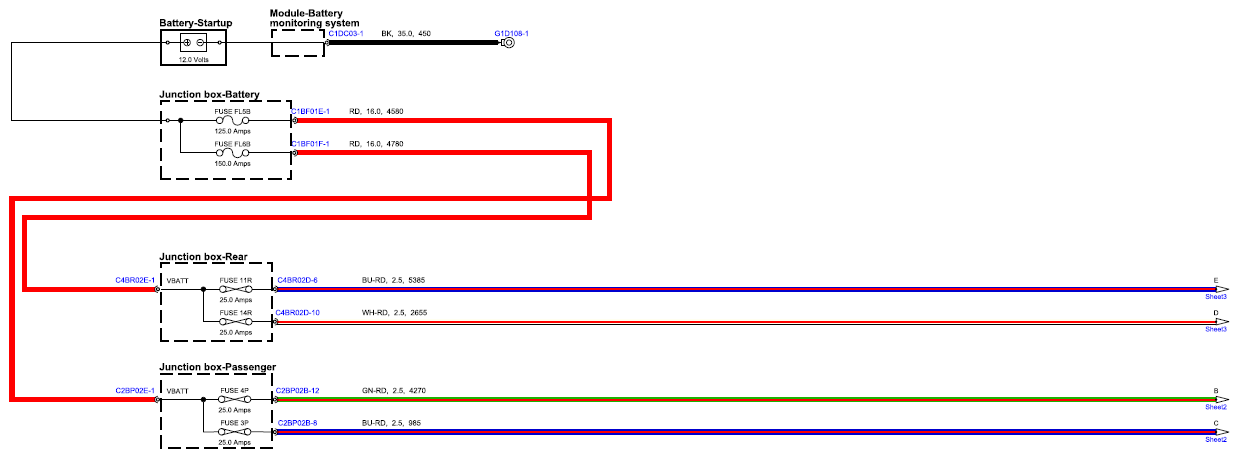

Fig 1: Glass, Frames And Mechanisms Circuit Diagram - Window Lift (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

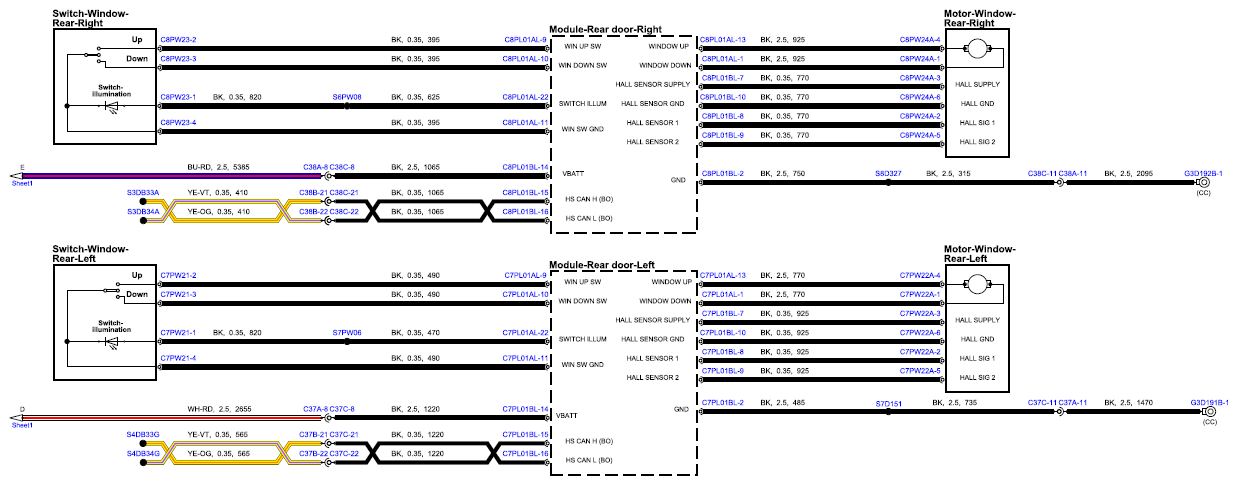

Fig 2: Glass, Frames And Mechanisms Circuit Diagram - Window Lift (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

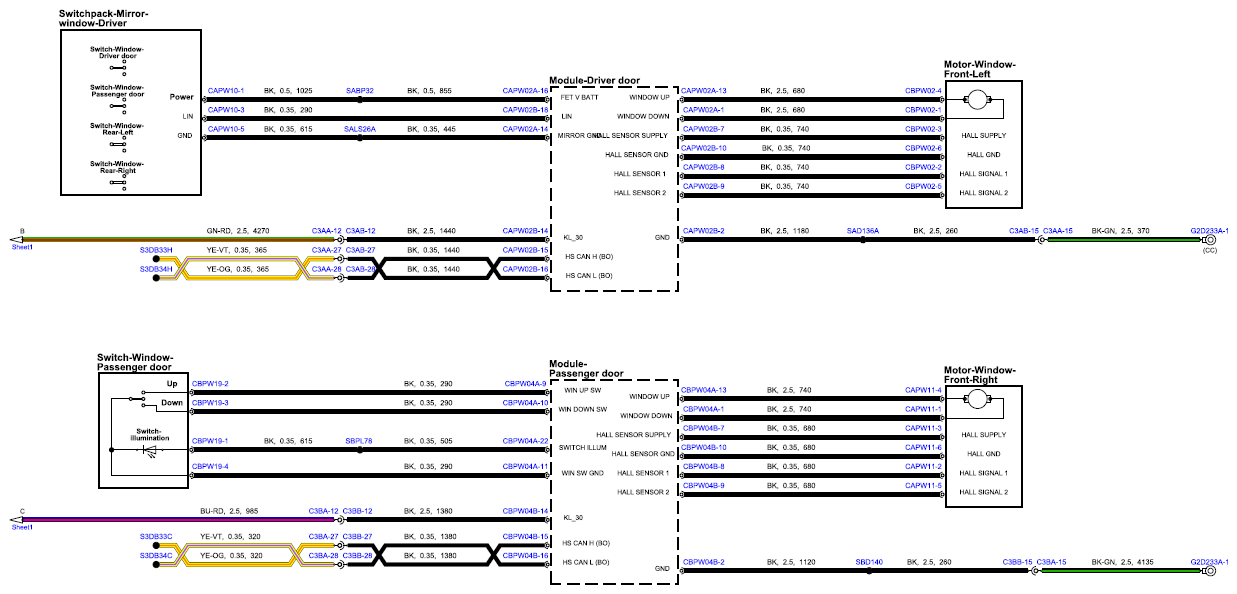

Fig 3: Glass, Frames And Mechanisms Circuit Diagram - Window Lift (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
