501-09 Rear View Mirrors: Electrochromic

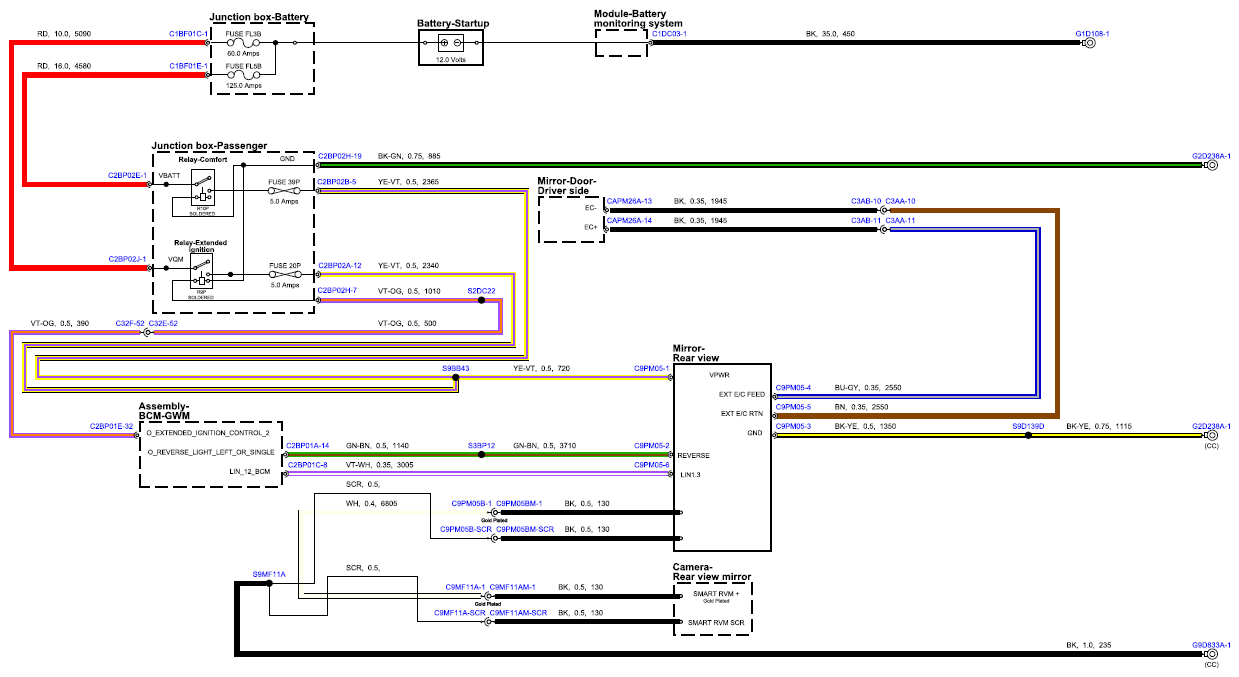

Fig 1: Rear View Mirrors Circuit Diagram - Electrochromic

G15669456

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
