206-05 Parking Brake And Actuation
206-05 Parking Brake And Actuation

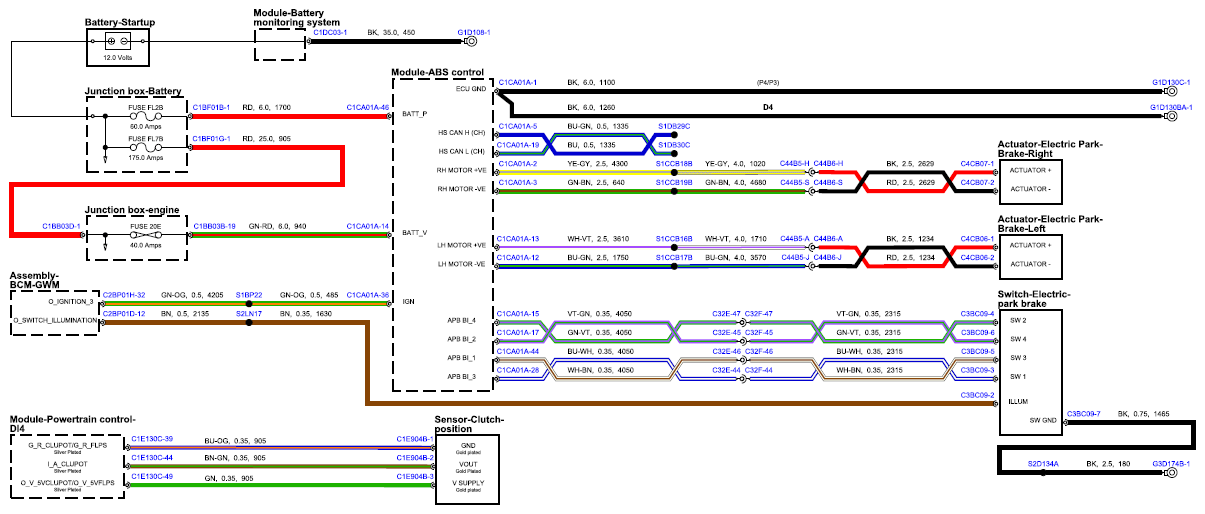

Fig 1: Parking Brake And Actuation Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
