Brake Fluid Reservoir (G2172300): Removal

CAUTION: If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Remove the cowl panel.
Refer to: COWL PANEL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

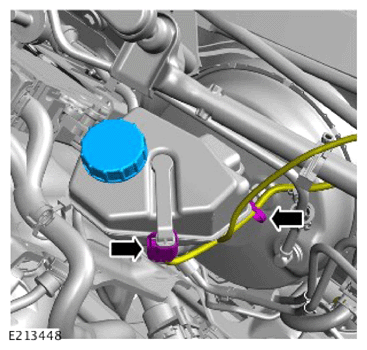

- Disconnect the electrical connector.
- Release the 2 retaining clips.
- Remove the brake fluid reservoir cap.
- Using a syringe, remove the brake fluid from the reservoir.
The following step(s) applies to:

Vehicles with manual transmission
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

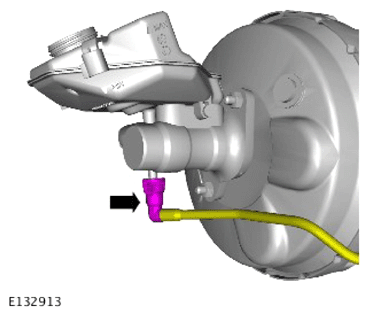

Disconnect the clutch fluid hose.

The following step(s) applies to:

All vehicles
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

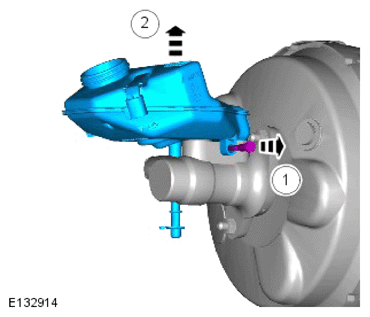

Remove the brake fluid reservoir.
CAUTION: Discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 2 o-ring seals.
