Rear Stabilizer Bar Link (G2187516): Removal

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the rear brake disc.
Refer to: BRAKE DISC .

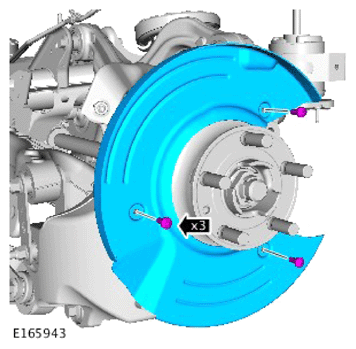

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Remove the rear brake disc shield.
CAUTION:
- Use an Allen key to prevent the ball joint rotating whilst removing the nut.
- Discard the nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 nuts.
- Remove the stabilizer bar link.
