Rear Lower Control Arm (G2187519): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the rear lower control arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to:LIFTING .
Remove the rear coil spring.
Refer to: COIL SPRING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

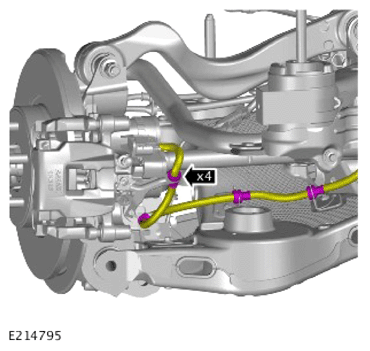

Release the wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

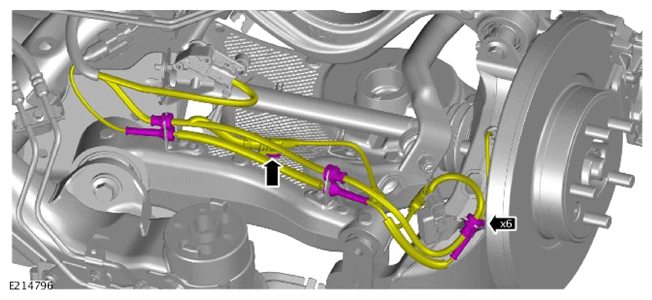

Release the 2 wiring harnesses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

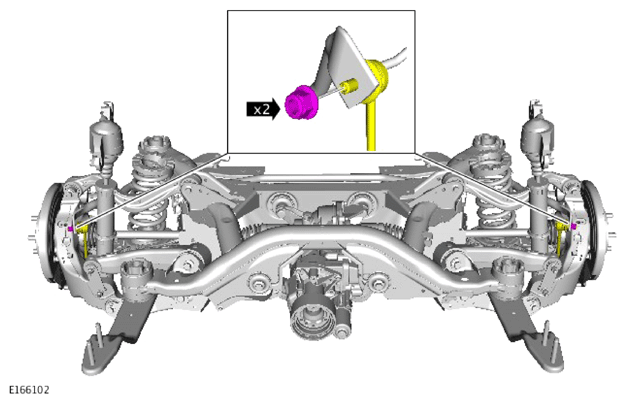

- Remove and discard the nut.
- Release the rear stabilizer upper bar link.
CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the rear lower control arm.
NOTE: Only complete the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

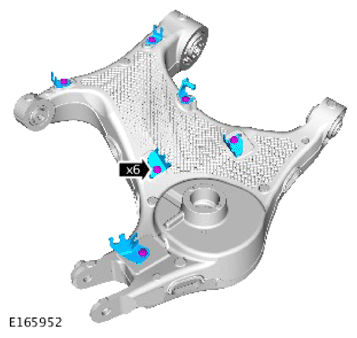

- Remove the 6 bolts.
- Remove the 6 brackets from the rear lower control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

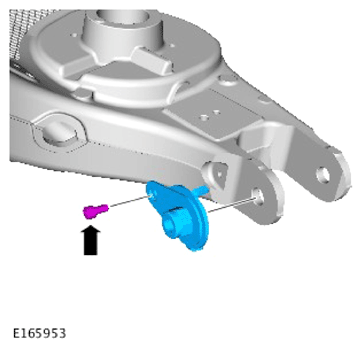

- Remove the bolt.
- Remove the captive nut.
