Cooling Module (G2185910): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the front armature.
Refer to: FRONT ARMATURE .
Drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
Release the auxiliary coolant pump.
Refer to: COOLANT PUMP - CHARGE AIR COOLER .
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Remove the horn assembly.
Refer to: HORN .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

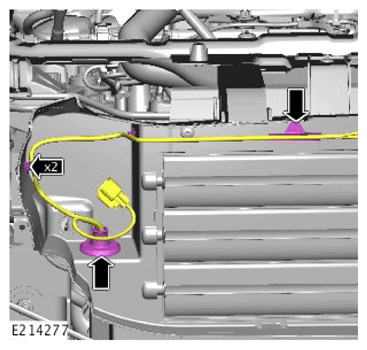

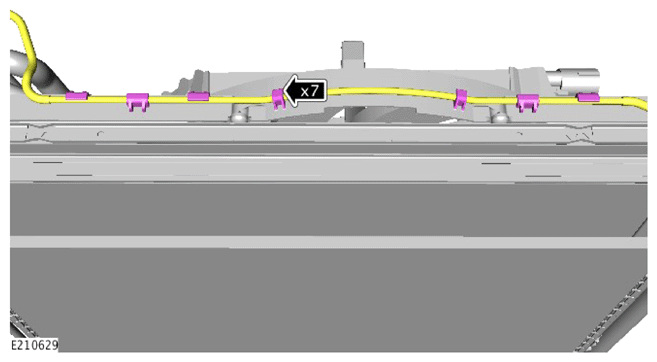

Release the wiring harness and clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

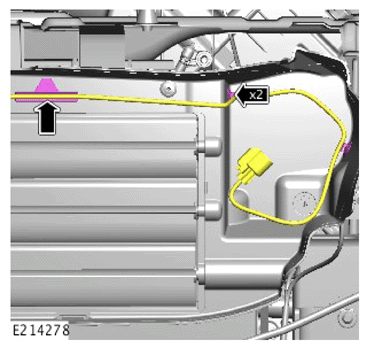

Release the wiring harness and clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

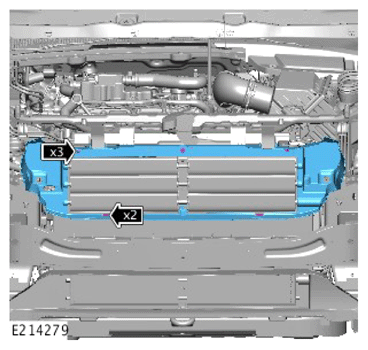

Remove the fasteners and release the cooling module air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

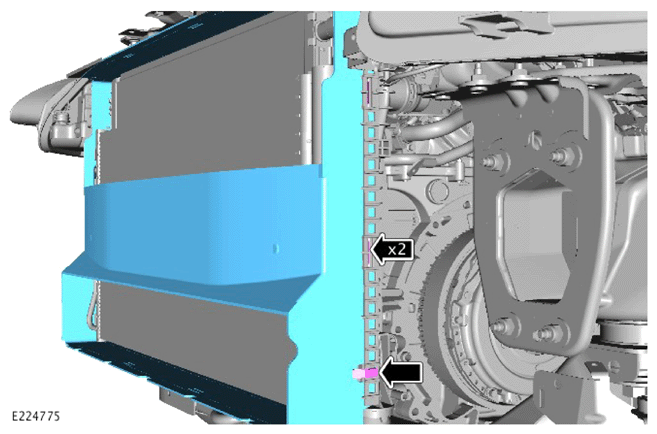

Release the retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

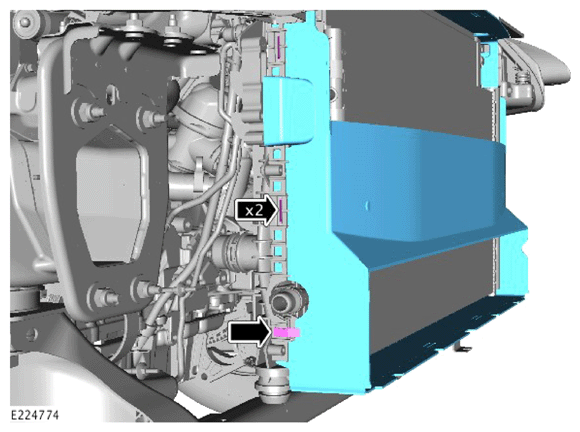

- Release the retaining clips.
- Remove the radiator air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

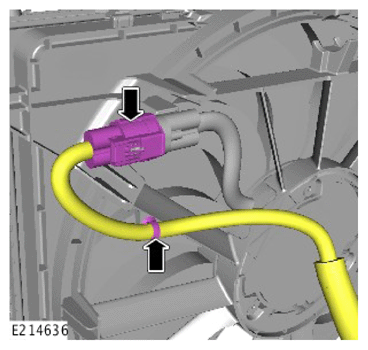

Disconnect the cooling fan electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

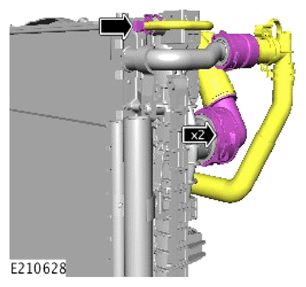

Disconnect the 3 left side coolant hoses
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release and position the coolant bleed hose from the radiator to one side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

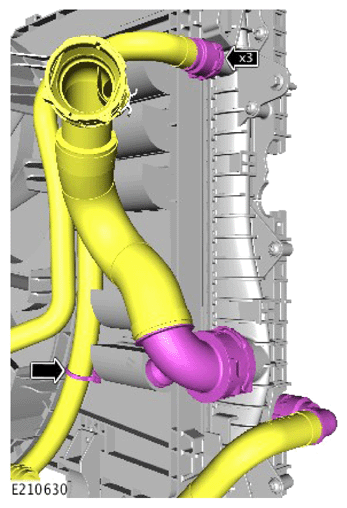

Release the clips and disconnect the 3 right side coolant hoses.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

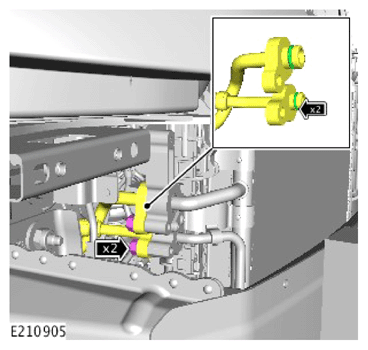

Disconnect the Air Conditioning (A/C) pipes. Discard the seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

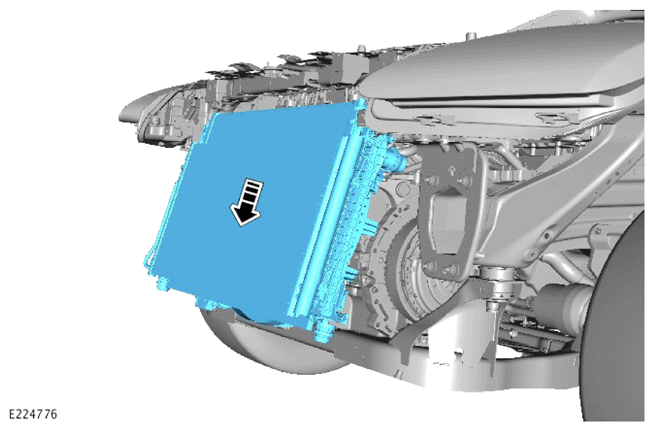

Remove the cooling module.
