Auxiliary Radiator

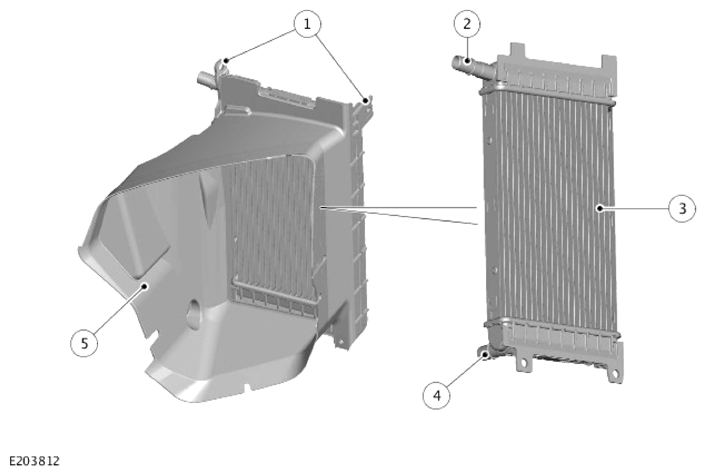

| ITEM | DESCRIPTION |
|---|---|
| 1 | Auxiliary radiator support bracket |
| 2 | Hose connection - Auxiliary radiator inlet |
| 3 | Auxiliary radiator |
| 4 | Hose connection - Auxiliary radiator outlet |
| 5 | Front air duct |
The auxiliary radiator is located on the left side of the cooling pack, behind the outer air intake in the front bumper. The auxiliary radiator is installed in air ducts attached to the front bumper armature and the front end carrier. The upper end tank of the auxiliary radiator is held in a support bracket in the air duct.
The auxiliary radiator is connected in parallel with the radiator to increase the engine cooling capacity.
