Parking Brake Switch (G2174390): Removal

  1. Remove the instrument panel lower trim panel.

    Refer to: INSTRUMENT PANEL LOWER TRIM PANEL .

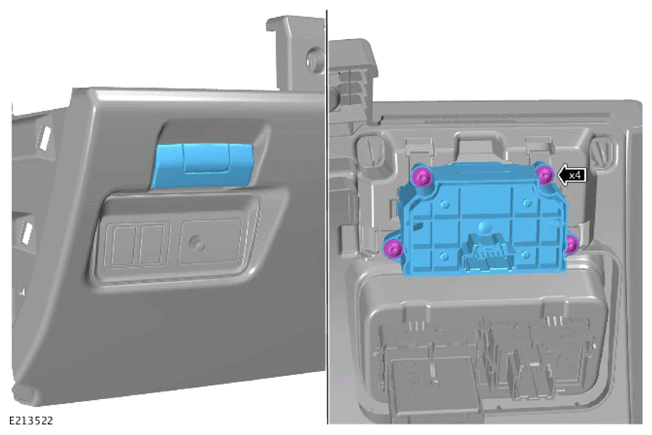

  2. G13892217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the switch.
