Shock Absorber And Spring Assembly (G1274519): Installation

  1. NOTE: Make sure that these components are installed to the noted removal position.

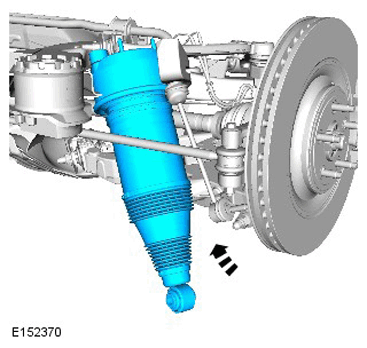

  2. G11283860

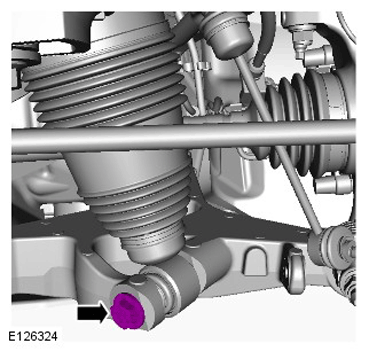

  3. G11283858

    Do not fully tighten at this stage.

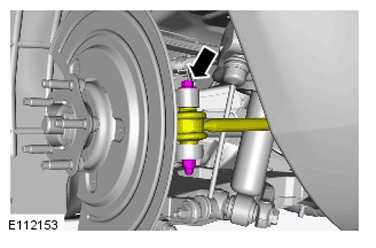

  4. G11283857

    Torque Specification: 63 Nm

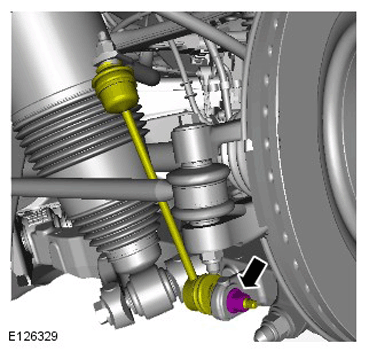

  5. G11283856

    Torque Specification: 48 Nm

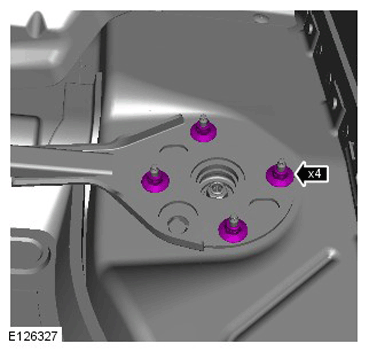

  6. G11283855

    Torque Specification: 30 Nm

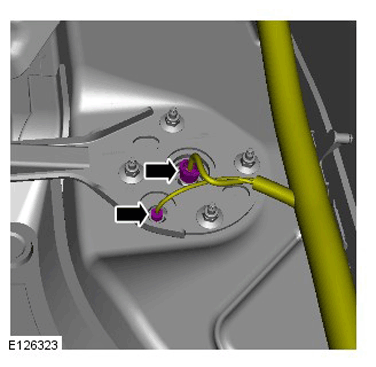

  7. G11283854

    Install a new air line connector.

    Refer to: Air Line Connector (General Procedures).

    Torque Specification: 5 Nm

  8. Refer to: WHEEL AND TIRE (Installation).
  9. Refer to: Air Suspension System Depressurize and Pressurize (General Procedures).
  10. G11283858

    Tighten the bolt at normal ride height.

    Torque Specification: 133 Nm

  11. Refer to: Loadspace Trim Panel RH (Installation).

    Refer to: Loadspace Trim Panel LH (Installation).
