Heated Oxygen Sensor (Ho2S) LH (G1269278): Removal

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to EXHAUST SYSTEM (G1269296) (Removal and Installation).

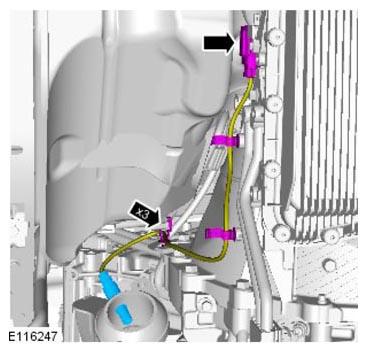

CAUTION: Note the fitted position of the component prior to removal.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Special Tool(s) : 310-121

Torque Specification : 48 Nm
