Fuel Rail Pressure (FRP) Sensor (G1574132): Removal

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Make sure that all openings are sealed. Use new blanking caps.
Make sure that the tools and equipment are clean, free of foreign material and lubricant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Refer to PETROL AND PETROL-ETHANOL HEALTH AND SAFETY PRECAUTIONS (Description and Operation).
Refer to FUEL SYSTEM PRESSURE RELEASE - GTDI 2.0L PETROL/V6 S/C 3.0L PETROL/V8 5.0L PETROL/V8 S/C 5.0L PETROL (General Procedures).
Refer to FUEL INJECTION COMPONENT CLEANING (G1202495) (General Procedures).
Refer to BATTERY DISCONNECT AND CONNECT (General Procedures).
Refer to ENGINE COVER - V8 5.0L PETROL/V8 S/C 5.0L PETROL (Removal and Installation).
Refer to SECONDARY BULKHEAD PANEL RH (Removal and Installation).

Vehicles with supercharger

CAUTION: Cap the coolant pipe ends immediately to minimize coolant loss.

Vehicles without supercharger

All vehicles

CAUTION: Be prepared to collect escaping fluids.

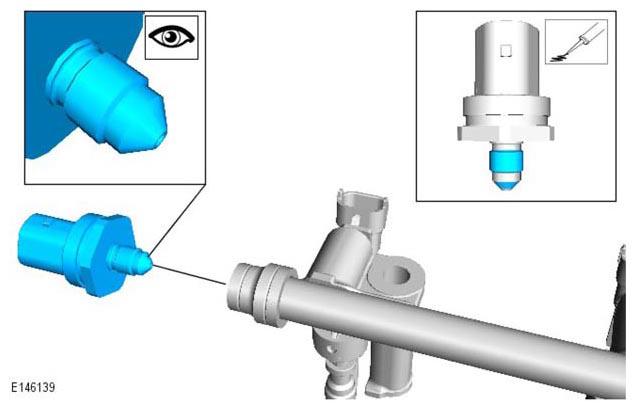

NOTE: During lubrication, keep the component vertically as shown.

Lubricate with Molykote W15 as shown.

Torque Specification : 38 Nm
NOTE:
- If equipped.
- During lubrication, keep the component vertically as shown.
Lubricate with Shell Ondina 933 as shown.

Torque Specification : 33 Nm
