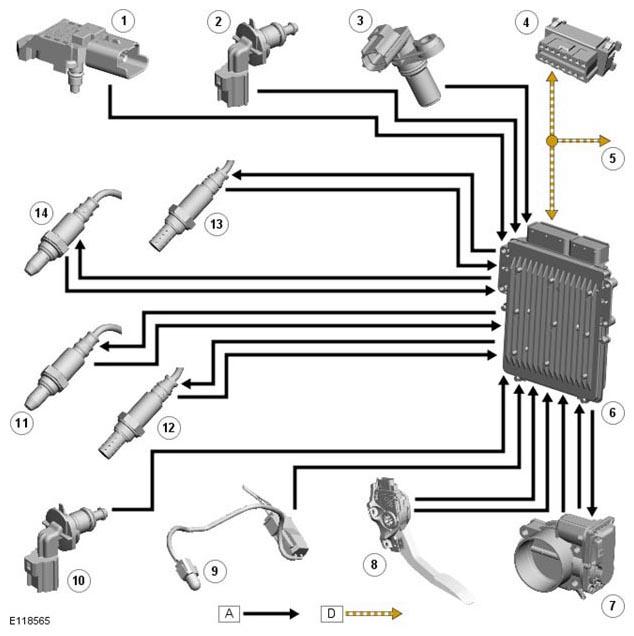

Control Diagram Sheet 2 Of 2
WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM |
DESCRIPTION |
| 1 |
MAP sensor |
| 2 |
ECT sensor (ECT 2) |
| 3 |
CKP sensor |
| 4 |
Diagnostic socket |
| 5 |
To other system control modules |
| 6 |
ECM |
| 7 |
Electronic throttle |
| 8 |
APP sensor |
| 9 |
AAT sensor |
| 10 |
ECT sensor (ECT 1) |
| 11 |
LH upstream HO2S |
| 12 |
LH downstream HO2S |
| 13 |
RH Downstream HO2S |
| 14 |
RH Upstream HO2S |
