Component Location - Sheet 2 Of 3

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

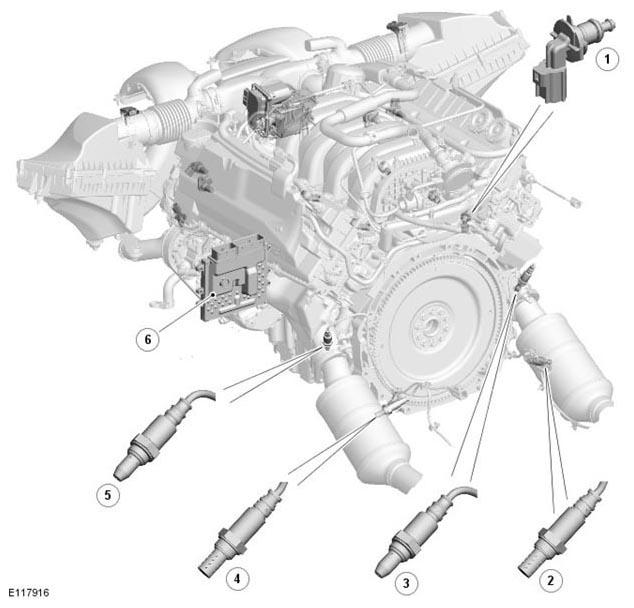

G11293335
ITEM DESCRIPTION
1 ECT sensor (ECT 1)
2 Downstream HO2S (heated oxygen sensor)
3 Upstream HO2S
4 Downstream HO2S
5 Upstream HO2S
6 ECM (engine control module)
