Transfer Case Rear Output Seal (G1569233): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The transfer case rear output seal and flange must be replaced as a kit. Do not replace the seal as a separate item.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Transfer Case  (Removal).
  4. CAUTION: Discard the snap ring.
    G11292461

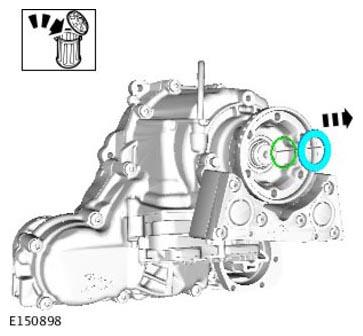

  5. CAUTION:
    • Remove and discard the shim.
    • Remove and discard the O-ring seal.
    G11292462

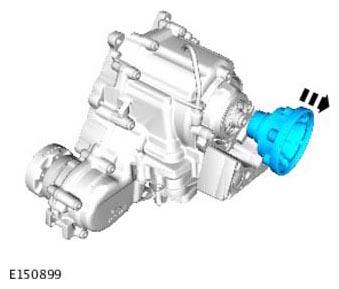

  6. CAUTION: Discard the output flange.
    G11292463

    Using a suitable tool, remove the output flange.

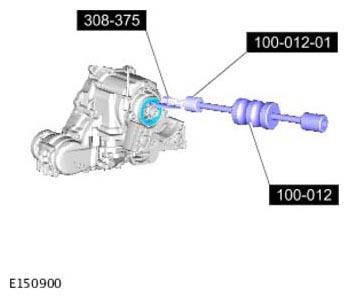

  7. CAUTION:
    • Care must be taken to avoid damage to the seal register and running surface.
    • Discard the seal.
G11292464
