Transfer Case Control Module (TCCM) (G1677435): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If a new component is to be installed, connect the approved diagnostic equipment prior to removal, the adaptive parameter data must then be downloaded. This data will be lost during removal and is required for component configuration on installation.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transfer case removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Connect the approved diagnostic equipment to obtain any fault code data (or) any diagnostic trouble codes (DTC's).
  2. Remove the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. Refer to: Air Deflector (Removal and Installation).
  5. G11292488

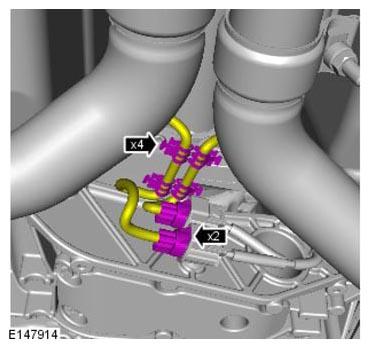

  6. G11292489

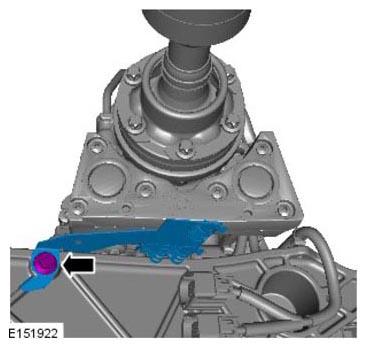

  7. G11292490

    Torque Specification: 7 Nm

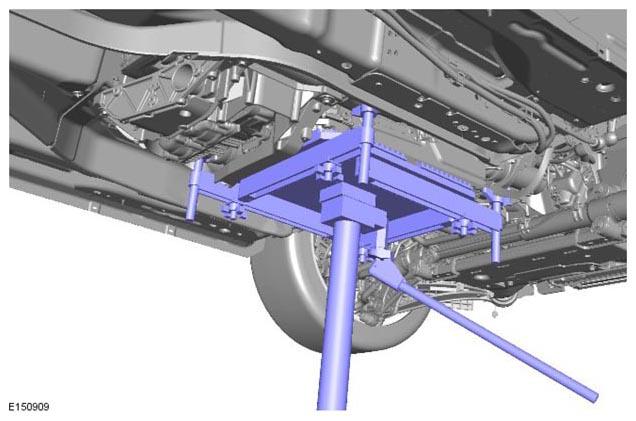

  8. G11292491

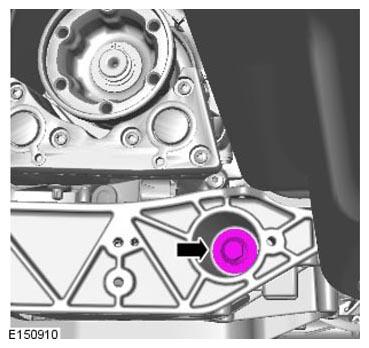

  9. G11292492

    Torque Specification: 103 Nm

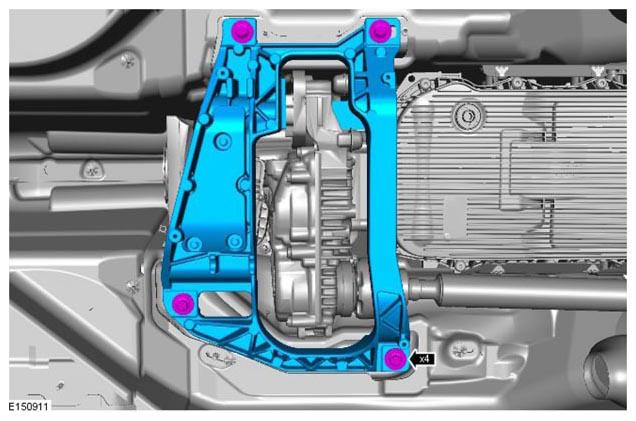

  10. G11292493

    Torque Specification: 48 Nm

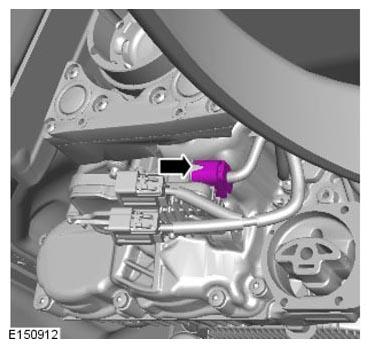

  11. G11292494

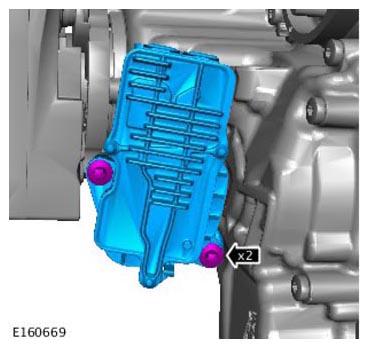

  12. G11292495

    Torque Specification: 22 Nm
