Transfer Case Control Module (TCCM) (G1677435): Installation

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

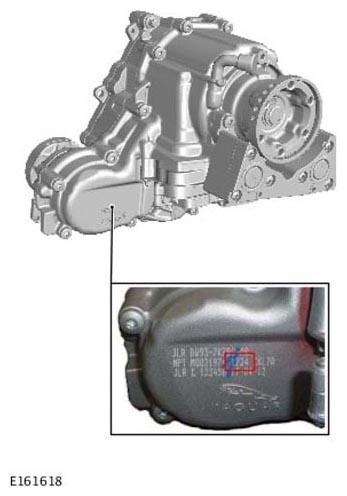

  2. G11292496

    Record the transfer case classification code.

    1. Connect the approved diagnostic equipment.
    1. Clear any DTC's.
    1. Carry out the transfer case control module configuration  procedure.
    1. Manually input the classification code if TCCM fails to configure. Complete the transfer case control module configuration  procedure.
    1. Clear DTC's after configuration and check for correct operation.
