Transfer Case (G1560537): Removal

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Remove the battery ground cable.

    Refer to: Battery Disconnect and Connect (General Procedures).

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Air Deflector (Removal and Installation).
  4. Refer to: Rear Driveshaft - AWD (Removal and Installation).
  5. CAUTION:
    • Mark the position of the driveshaft flange in relation to the drive pinion flange.
    • To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
    • Discard the bolts.
    G11292497
  7. G11292491
  8. G11292492

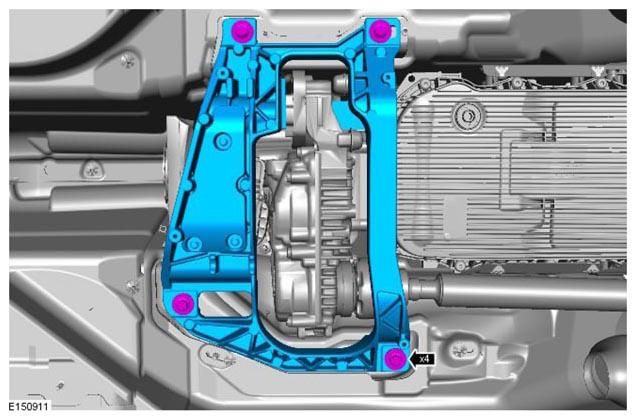

  9. G11292500

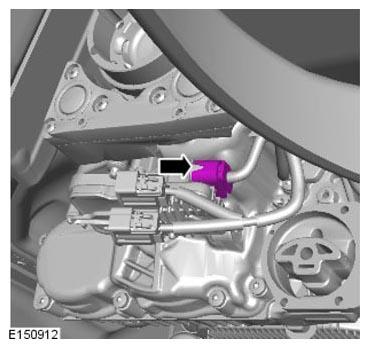

  10. G11292501

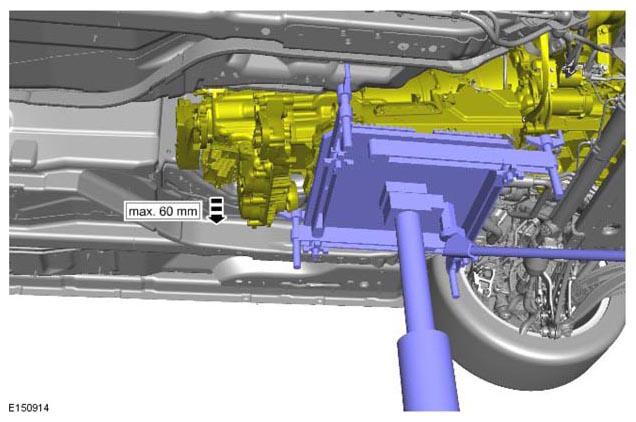

    G11292502

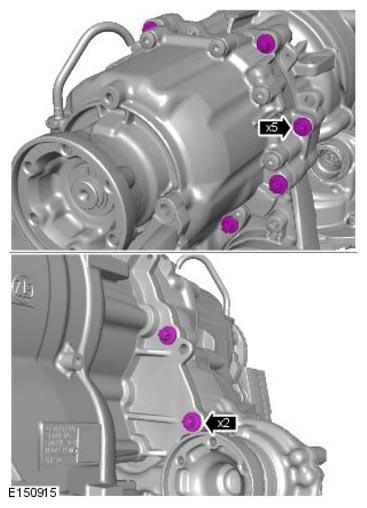

  11. NOTE: Note the orientation of the transfer case bolts prior to removal.
    G11292503

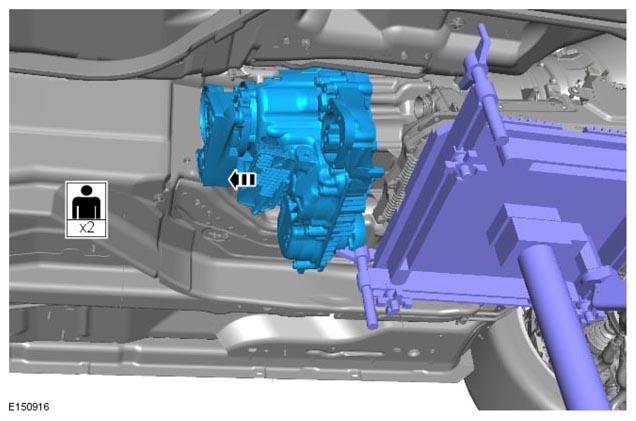

  12. G11292504
  13. CAUTION: Do not carry out this step if a new transfer box is to be installed.
G11292297
