Transfer Case Draining And Filling (G1560530): Draining

WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Removal and Installation).
  3. Position a container to collect the fluid.

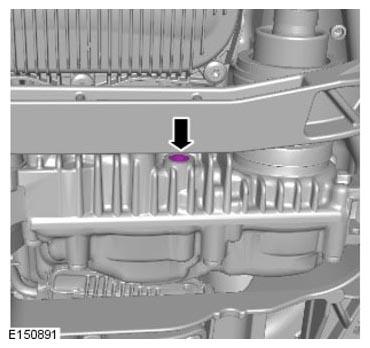

  4. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11292431
  5. Allow the fluid to drain.
