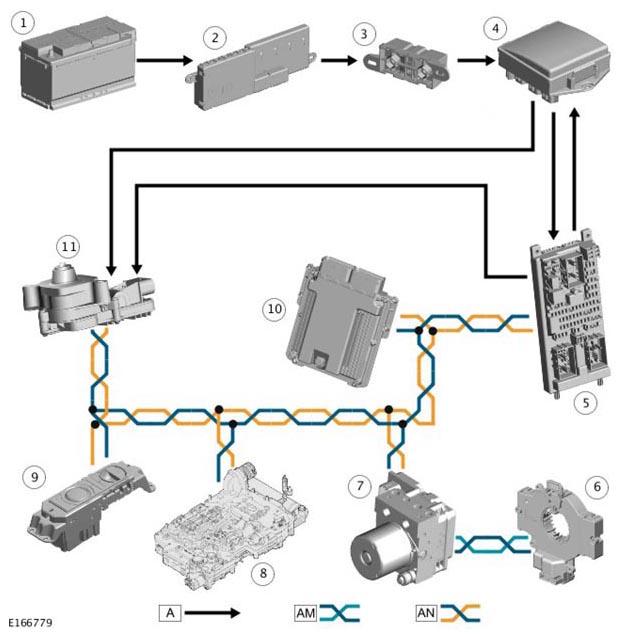

Control Diagram
WARNING: This page is about a different car, the 2017 Jaguar XJ, 2016 Jaguar XJ, 2015 Jaguar XJ, 2014 Jaguar XJ, and 2013 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; AM
= HS (High Speed) CAN (Controller Area Network) Chassis bus; AN
= HS CAN Powertrain bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Megafuse |
| 4 | Engine Junction Box (EJB) |
| 5 | Central Junction Box (CJB) |
| 6 | Steering Angle Sensor Module (SASM) |
| 7 | JaguarDrive Switchpack (JDS) |
| 8 | Transmission Control Module (TCM) |
| 9 | Anti-lock Brake System (ABS) control module |
| 10 | Engine Control module (ECM) |
| 11 | Transfer Case Control Module (TCCM) |
