Timing Cover (G1271903): Installation

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.
- Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
NOTE: Tighten the bolts in the indicated sequence.

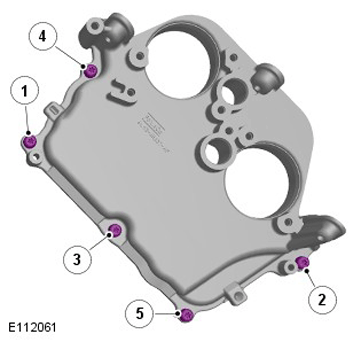

Fig 1: Timing Cover Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications: 12 Nm
NOTE: Tighten the bolts in the indicated sequence.

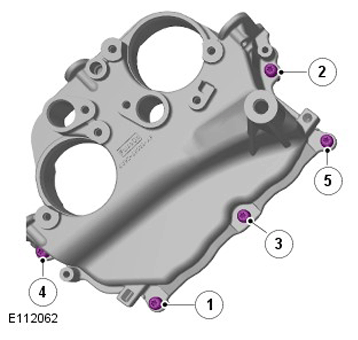

Fig 2: Timing Cover Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications: 12 Nm
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Install the bolts, but do not tighten fully at this stage.

Special Tool(s): 303-1433
Fig 3: Timing Cover Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specifications:

M6 12 Nm

M8 20 Nm
Remove the special tools.

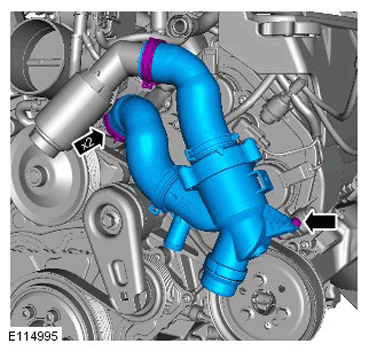

Torque Specifications: 12 Nm
Torque Specifications: 12 Nm
Torque Specifications: 25 Nm

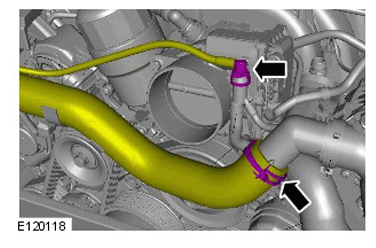

Torque Specifications: 12 Nm

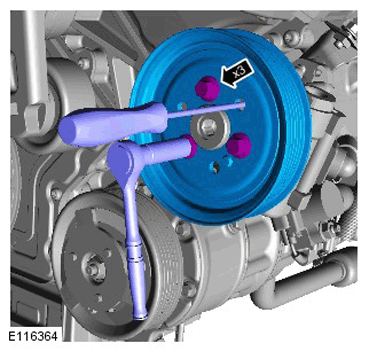

NOTE: Install the bolt finger tight before final tightening.

Torque Specifications: 40 Nm
Torque Specifications: 25 Nm
Refer to: CRANKSHAFT PULLEY (G1785731) .
Refer to: VALVE COVER LH (G1271906) .
Refer to: VALVE COVER RH (G1271907) .
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING (G1816935) .
Connect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT .
