Oil Pan Extension (G1271901): Removal

WARNING: This page is about a different car, the 2013 Jaguar XJ, 2012 Jaguar XJ, 2011 Jaguar XJ, and 2010 Jaguar XJ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the engine removed for clarity.
  1. Refer to: BATTERY DISCONNECT AND CONNECT .
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: CRANKSHAFT PULLEY (G1785731) .
  4. Refer to: ENGINE (G1271908) .
  5. CAUTION:
    • The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
    • Make sure that no components fall off during removal.
    NOTE:
    • Make sure that the crankshaft is not rotated.
    • Make sure the crankshaft and flexplate mating faces are clean before installation.
    G11285085
  6. G11285143
  7. G11285144
  8. G11285145

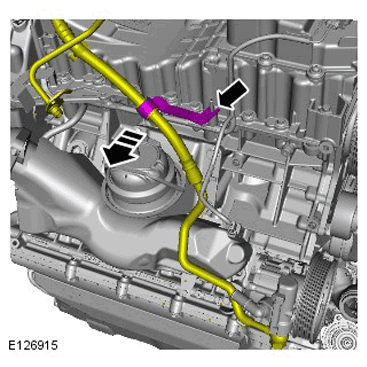

  9. G11285146
  10. G11285147
  11. G11285148
  12. G11285149
  13. G11285150
  14. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285092
  15. G11285152
  16. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11285153
  17. G11284999
  18. G11285155
  19. G11285156
  20. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    • Discard the fuel pipes.
    G11285157
  21. G11285158
  22. CAUTION: Be prepared to collect escaping fluids.
    G11285159
  23. CAUTION: Be prepared to collect escaping fluids. 23.
    G11285160
  24. CAUTION: Be prepared to collect escaping fluids.
    G11285161
  25. G11285162
  26. G11285163
  27. CAUTION: Be prepared to collect escaping fluids.
    G11285164
  28. G11285136
  29. G11285166
  30. NOTE: Clean the components general area prior to dismantling.
    G11284855
  31. NOTE: Discard the component.
    G11285168
  32. G11285169
  33. NOTE: Make sure to use the aluminium lug provided on the oil pan extension to lever against.
    G11285170
  34. NOTE: Do not disassemble further if the component is removed for access only.
    G11285171
